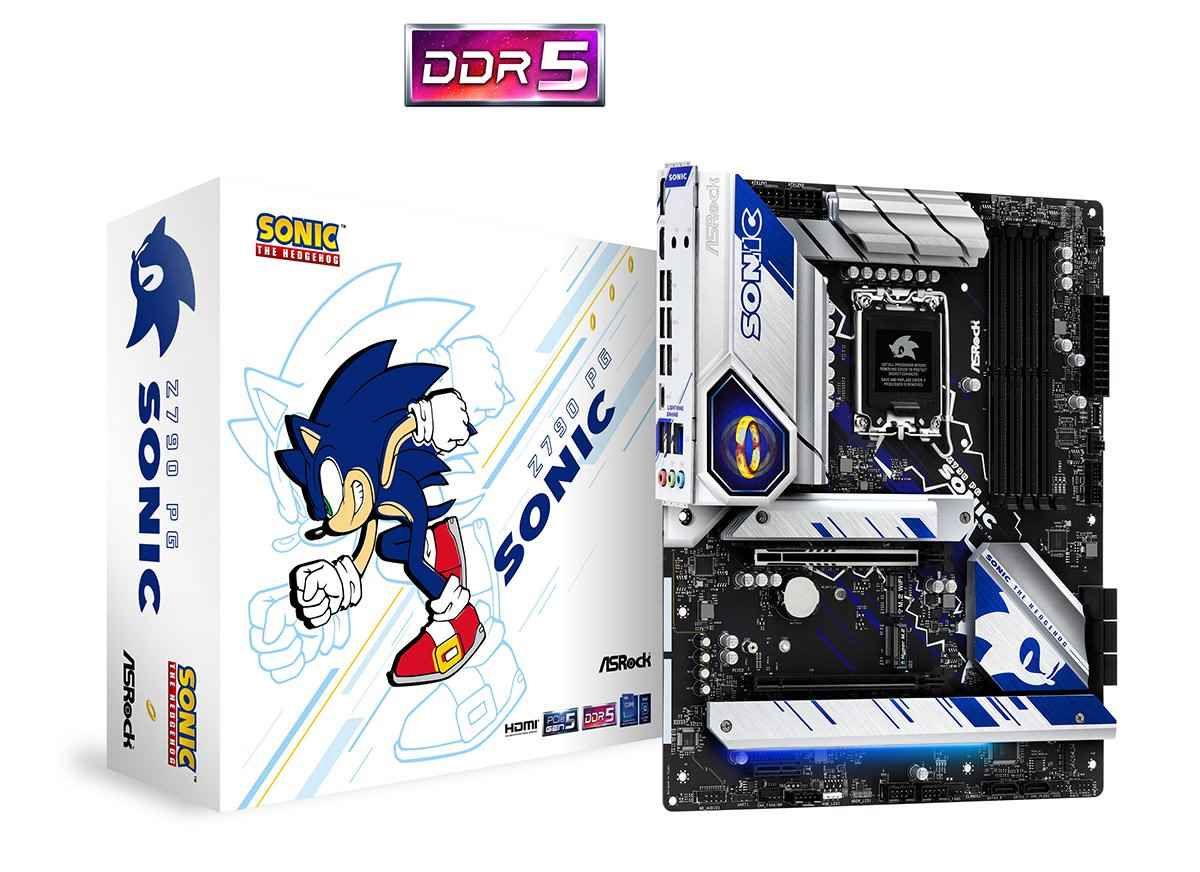

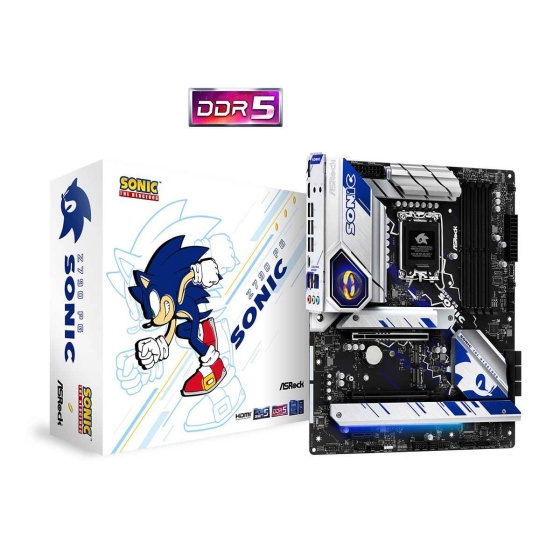

ASRock MB Sc LGA1700 Z790 PG SONIC, Intel Z790, 4xDDR5, 1xDP, 1xHDMI
Kód: 380801Na dotaz
Termín a způsob doručení
Formát základní desky:ATX; Chipset:Intel Z790; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; SATA 3:8; Podpora RAID:0, 1, 5; PCI Express x16:2; PCI Express x1:1; DisplayPort:1; HDMI:1; VGA:0; DVI:0; TPM; 3.5mm Jack.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
380801
EAN:
4710483941009
Záruka:
36 Měsíc(ů)
Stav:
Socket (patice):
Socket 1700
Formát základní desky:
ATX
Chipset:
Intel Z790
Technologie paměti RAM:
DDR5
PCI Express x16:
2
Podpora RAID:
1, 5
3.5mm Jack:
Ano
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
1
TPM:
Ano
SATA 3:
8
HDMI:
1
PCI Express x1:
1

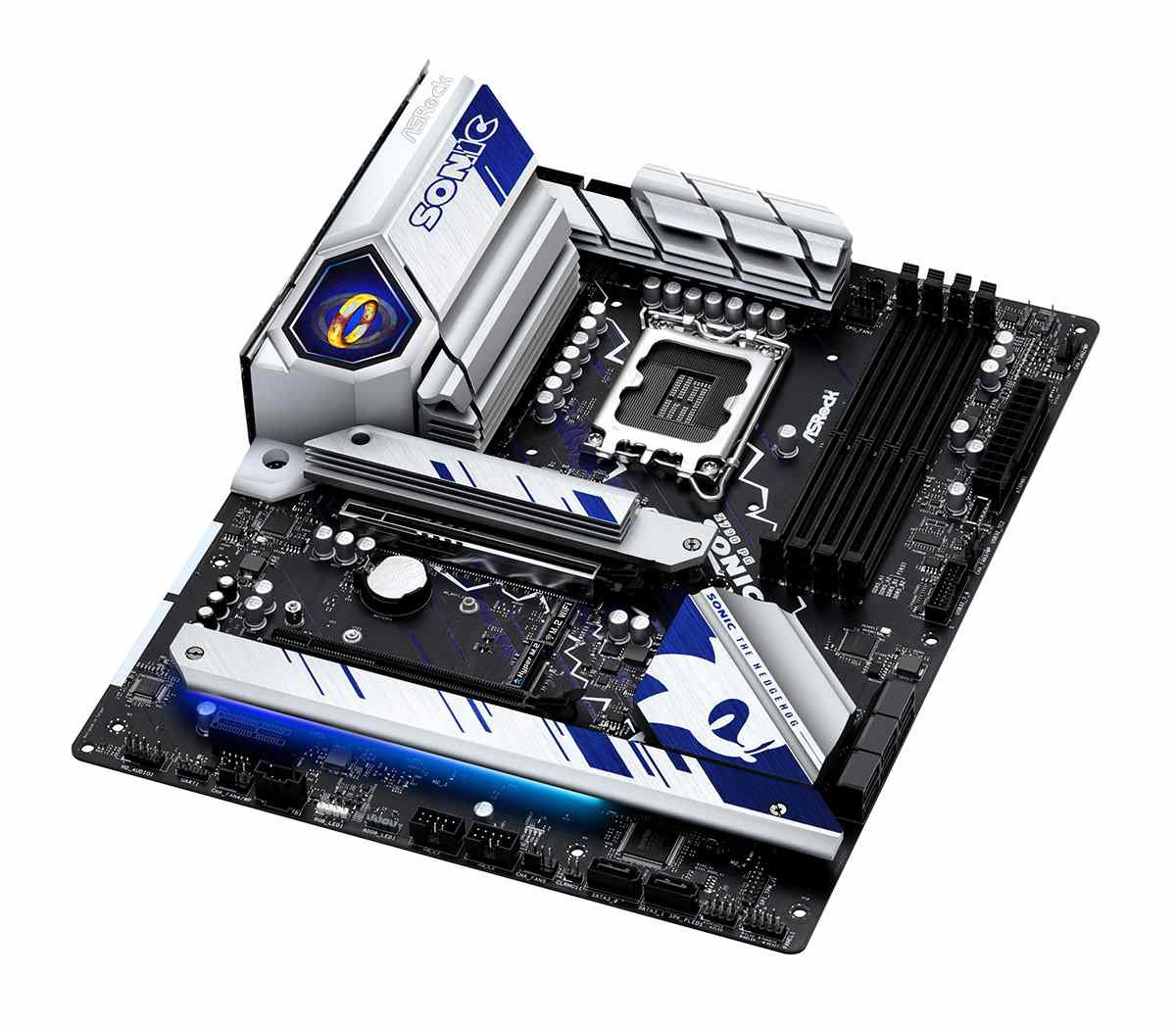

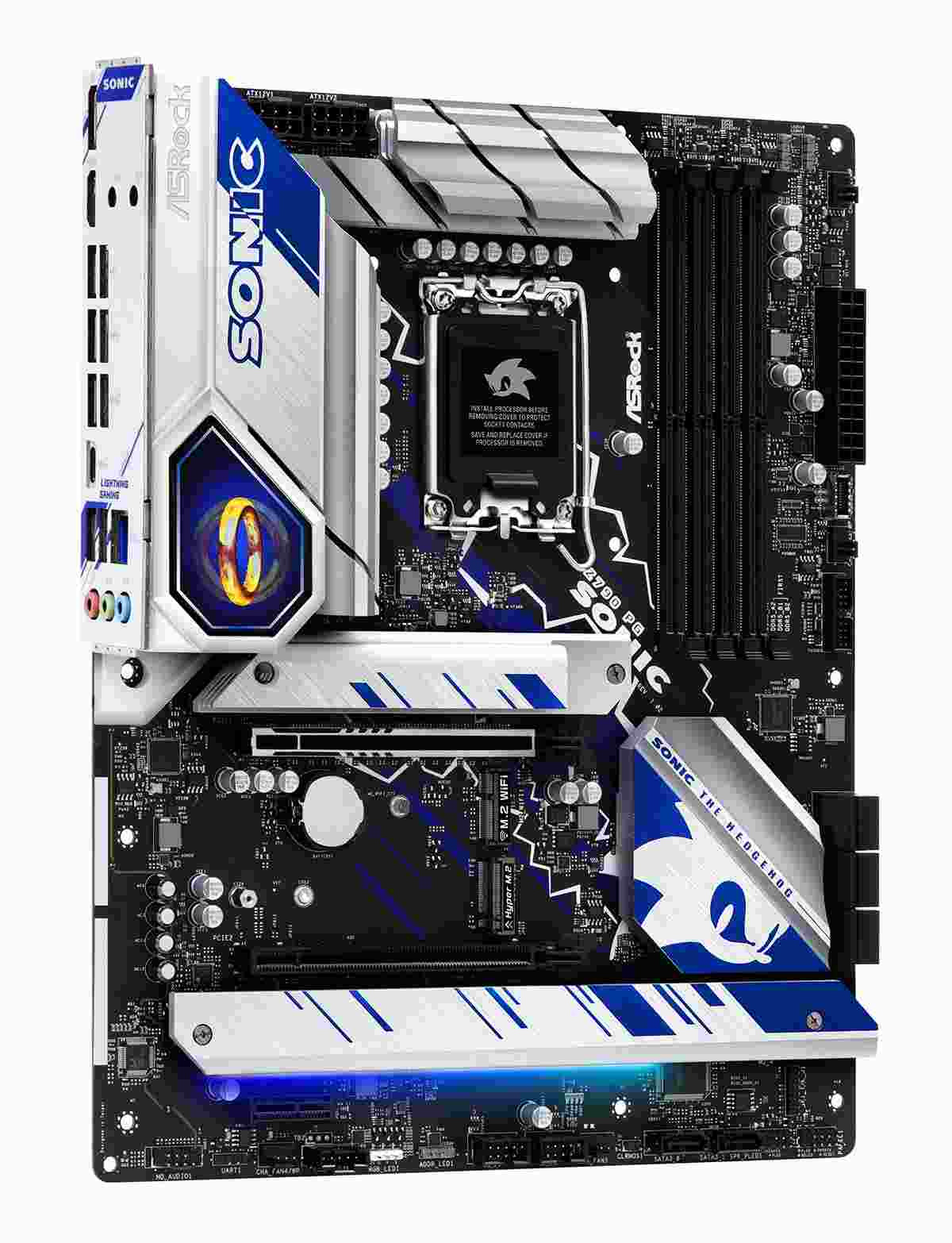

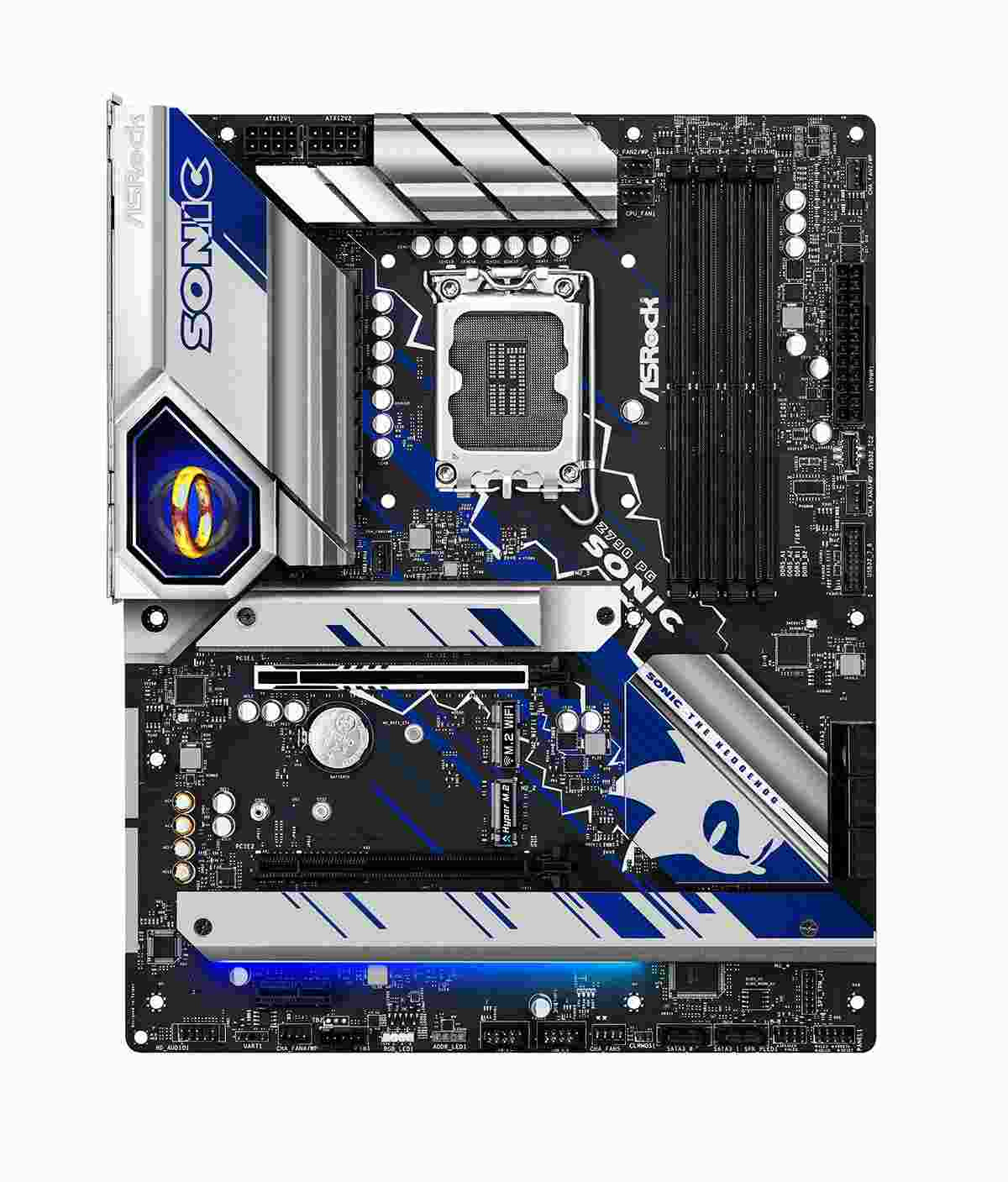

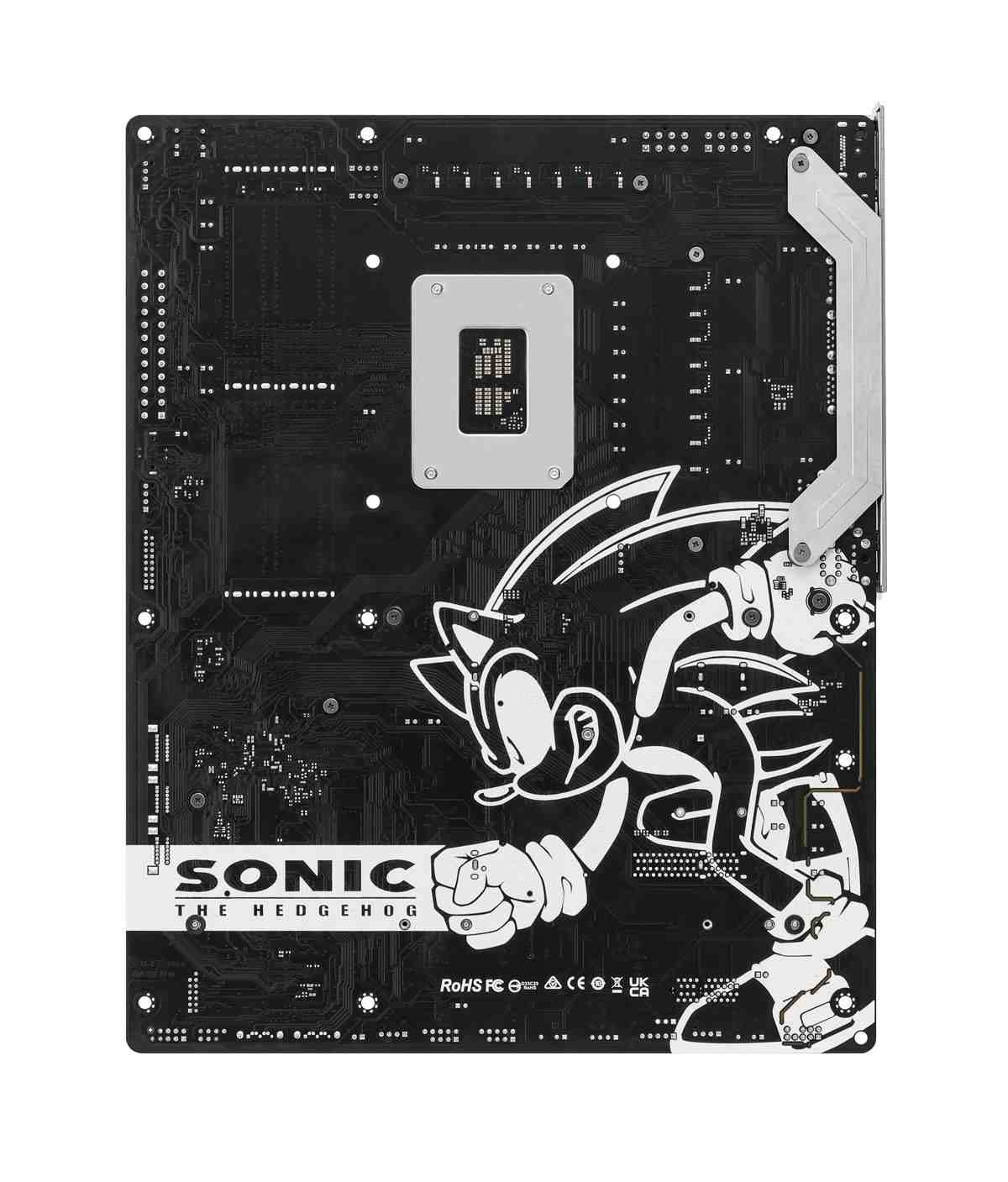

Popis ASRock MB Sc LGA1700 Z790 PG SONIC, Intel Z790, 4xDDR5, 1xDP, 1xHDMI
Z790 PG SONIC
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs, supports up to 6800+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16,
- 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4),
- 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front),
- 2 USB 3.2 Gen2 Type-A (Rear),
- 1 USB 3.2 Gen1 Type-C (Rear),
- 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Killer 2.5G LAN
Unique Feature
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Flexible Integrated I/O Shield
Ultrafast Connectivity
- Killer 2.5G LAN
- ASRock Lightning Gaming Ports
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
CPU
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
Chipset
- Intel® Z790
Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0
*1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Killer E3100G
- Supports Killer LAN Software
Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x PCIe 3.0 x1 Slot (PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™
*If M2_5 is occupied, PCIE1 will downgrade to x8 mode.
Supports NVMe SSD as boot disks
Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Blazing M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 8 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
If M2_5 is occupied, PCIE1 will downgrade to x8 mode.
Either M2_1 or M2_5 can be used at a time.
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)*****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN5 supports the fan power up to 1A (12W).
****** CHA_FAN1~4/WP support the fan power up to 2A (24W).
****** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

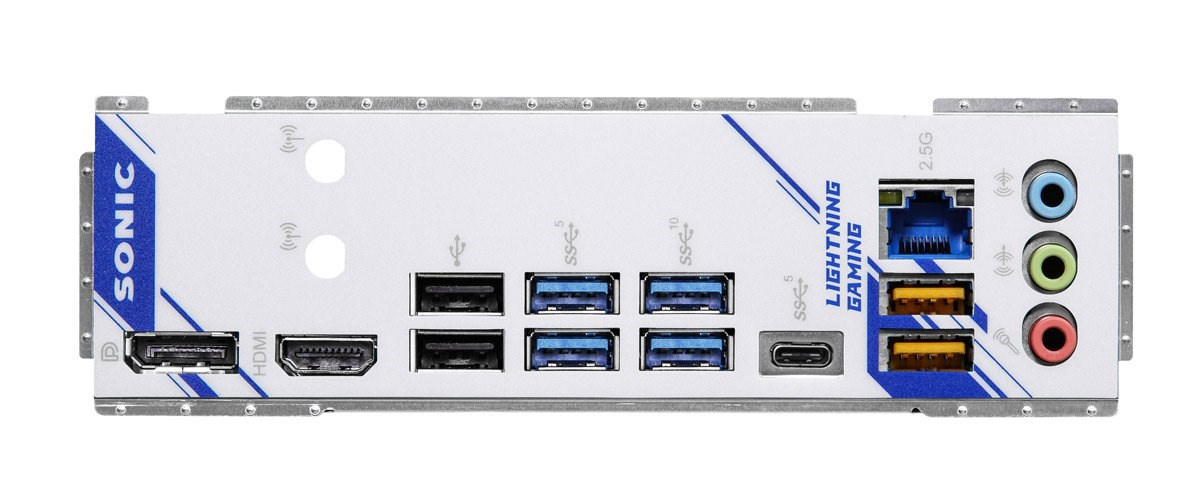

Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 3.2 Gen1 Type-A Ports (USB32_56 are Lightning Gaming Ports.)
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
- 1 x User Manual
- 2 x SATA Data Cables
- 5 x Screws for M.2 Sockets
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
*Windows® 10 only supports version 21H2 or later
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
