ASUS MB PRIME N100I-D D4-CSM, Intel® Processor N100, 1xDDR4, 1xHDMI, 1xDP, 1xVGA, Mini-ITX
Kód: 1887156Ihned k odeslání
Termín a způsob doručení
Formát základní desky:Mini-ITX; Chipset:Intel; Socket (patice):Integrovaný procesor; Pro procesory:Integrovaný procesor; Technologie paměti RAM:SODIMM DDR4; Počet paměťových slotů:1; M.2 slot:1; SATA 3:1; Podpora RAID:Bez RAID podpory; PCI Express x16:0; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1887156
EAN:
4711387262320
Záruka:
36 Měsíc(ů)
Stav:
Socket (patice):
Integrovaný procesor
Formát základní desky:
Mini-ITX
Chipset:
Intel
Technologie paměti RAM:
SODIMM DDR4
Podpora RAID:
Bez RAID podpory
COM port:
Ano
LPT port:
Ano
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
Integrovaný procesor
Počet paměťových slotů:
1
DisplayPort:
1
TPM:
Ano
USB 2:
4
USB 3:
6
M.2 slot:
1
SATA 3:
1
VGA:
1
HDMI:
1
Led Header:
Ne
PCI Express x1:
1
LAN:
1Gbit/s
Popis ASUS MB PRIME N100I-D D4-CSM, Intel® Processor N100, 1xDDR4, 1xHDMI, 1xDP, 1xVGA, Mini-ITX

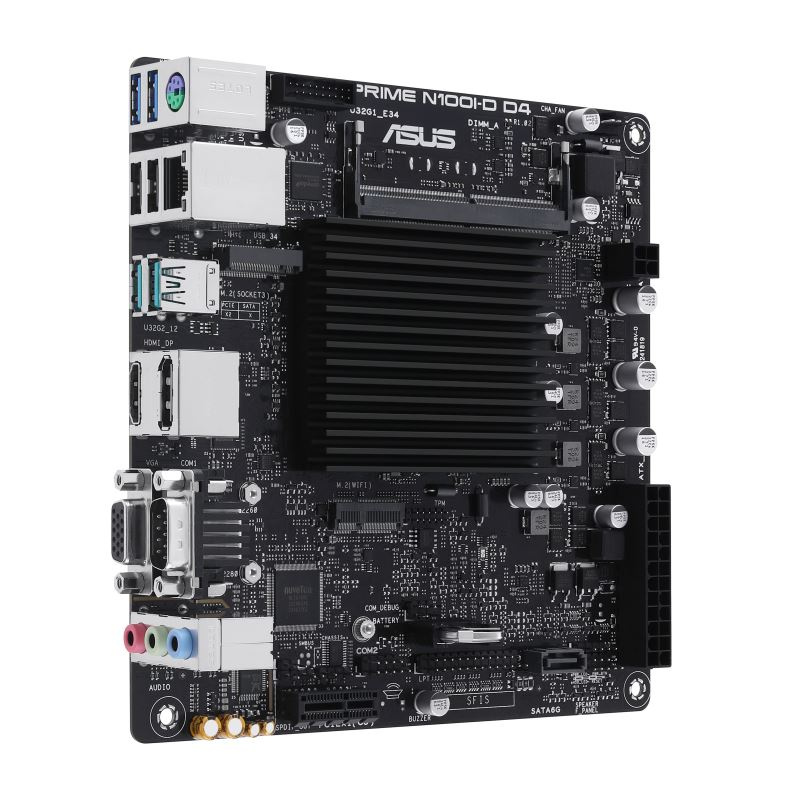

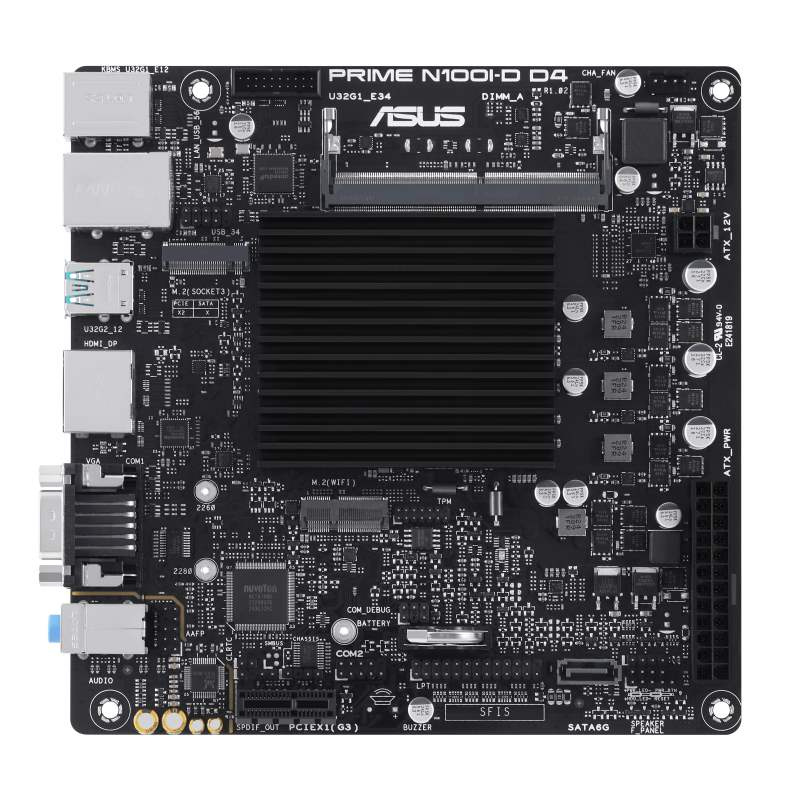

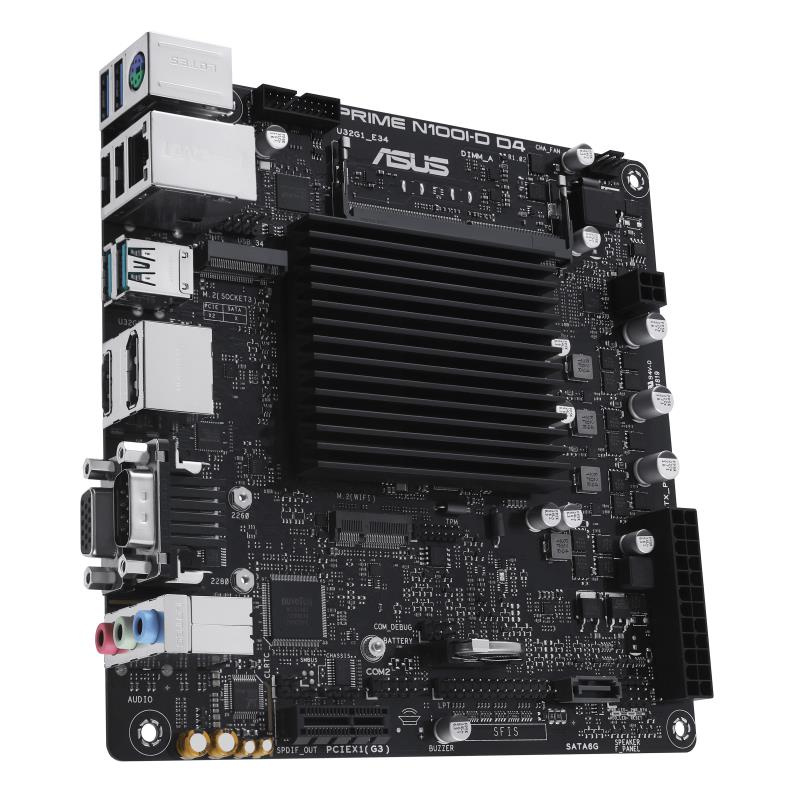

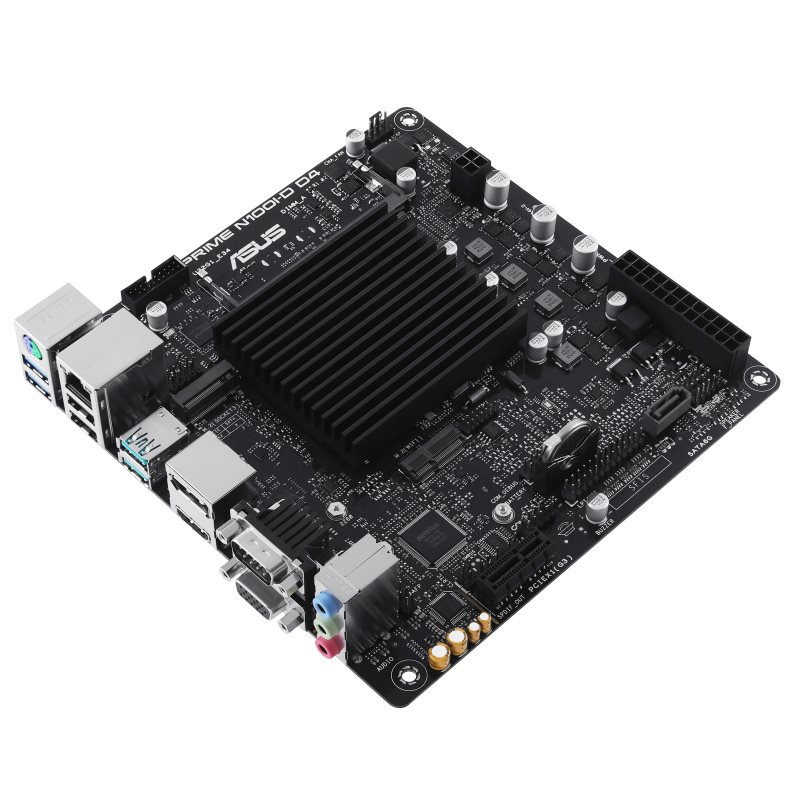

ASUS PRIME N100I-D D4-CSM
Low-power, fan-less motherboard for Intel® Processor N100, with PCIe 3.0, DisplayPort/HDMI™/VGA, USB 3.2 Gen 2 port, M.2 WIFI slot, SATA 6 Gbps, LPT header, COM Port, COM Header, Q-LED Core
- Ultrafast Connectivity: PCIe 3.0 x1 slot, 16Gbps M.2 support, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 and 1Gb Ethernet
- Better serviceability: COM debug header to facilitate building and support processes
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
CPU
Onboard Intel® Processor N100
Supports Intel® Turbo Boost Technology 2.0
Memory
1 x SO-DIMM, Max. 16GB, DDR4 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
* We recommend that you use 16GB or less memory module.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Graphics
1 x DisplayPort**
1 x VGA port
1 x HDMITM port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMITM 2.1.
Expansion Slots
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port
1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode)
1 x SATA 6Gb/s port
Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)*
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

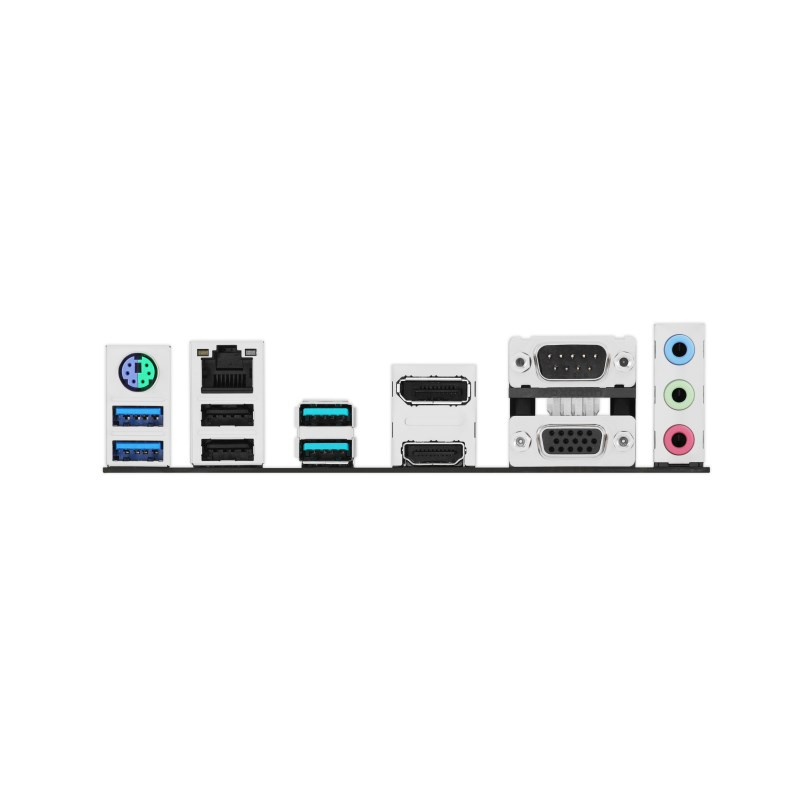

Back Panel I/O Ports
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM Port
1 x COM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and cooling related
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
1 x SATA 6Gb/s port
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x Chassis Intrude header
1 x LPT header
1 x S/PDIF out header
1 x SPI TPM header (14-1pin)
1 x Speaker Header
1 x System Panel connector
Special Features
Proven Quality
- ESD Guards
- LANGuard
- Overvoltage Protection
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-LED Core
ASUS Thermal Solution
- CPU heatsink design
Software Features
ASUS Exclusive Software
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E
Documentation
1 x User guide
1 x ACC Express Activation Key Card
Operating System
Windows® 11(Version 22'H2 and later), Windows® 10 64-bit
Form Factor
Mini-ITX Form Factor 17cm x 17cm
