ASUS MB Sc sWRX9 PRO WS WRX90E-SAGE SE, AMD WRX90, 8xDDR5, EEB
Kód: 1887259Ihned k odeslání
Termín a způsob doručení
Formát základní desky:EEB; Chipset:AMD WRX90; Socket (patice):Socket TRX5; Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:8; M.2 slot:4; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:7; PCI Express x1:0; PCI:0; LAN:1Gbit/s, 10Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:0; VGA:0; DVI:0; DisplayPort Type-C:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1887259
EAN:
4711387441145
Záruka:
36 Měsíc(ů)
Stav:
Socket (patice):
Socket TRX5
Formát základní desky:
EEB
Chipset:
AMD WRX90
Technologie paměti RAM:
DDR5
PCI Express x16:
7
Podpora RAID:
1, 10, 5
COM port:
Ano
LPT port:
Ne
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
AMD
Počet paměťových slotů:
8
TPM:
Ano
USB 2:
5
USB 3:
8
M.2 slot:
4
SATA 3:
4
Led Header:
Ne
USB C:
3
LAN:
10Gbit/s, 1Gbit/s
Popis ASUS MB Sc sWRX9 PRO WS WRX90E-SAGE SE, AMD WRX90, 8xDDR5, EEB

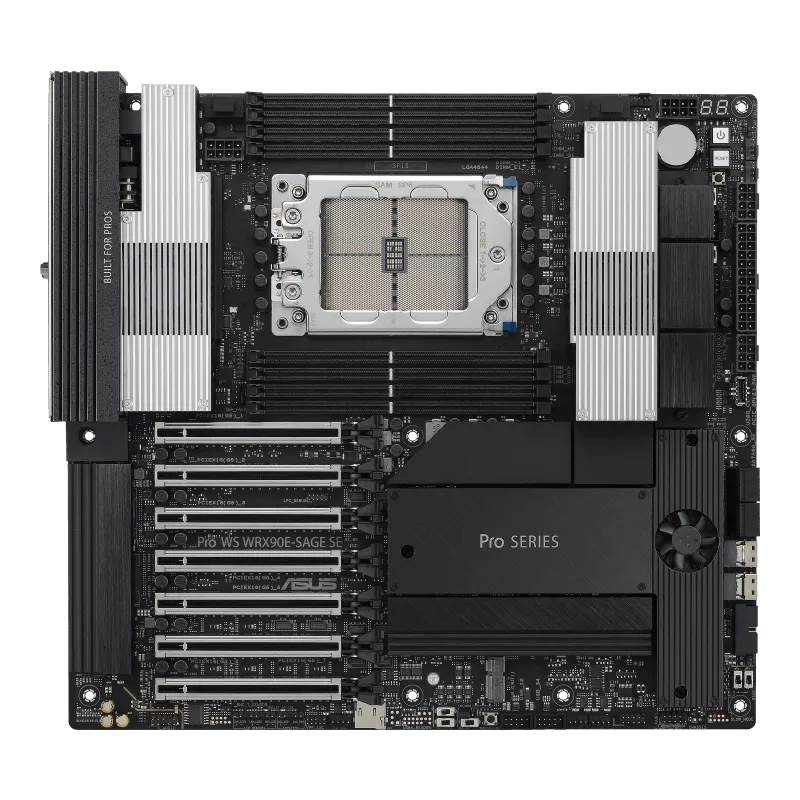

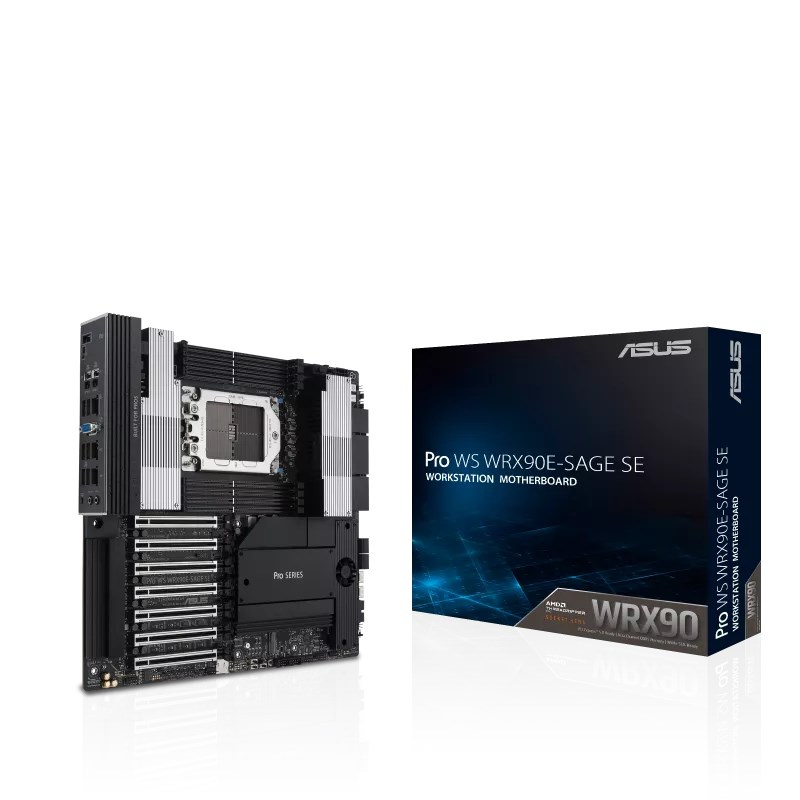

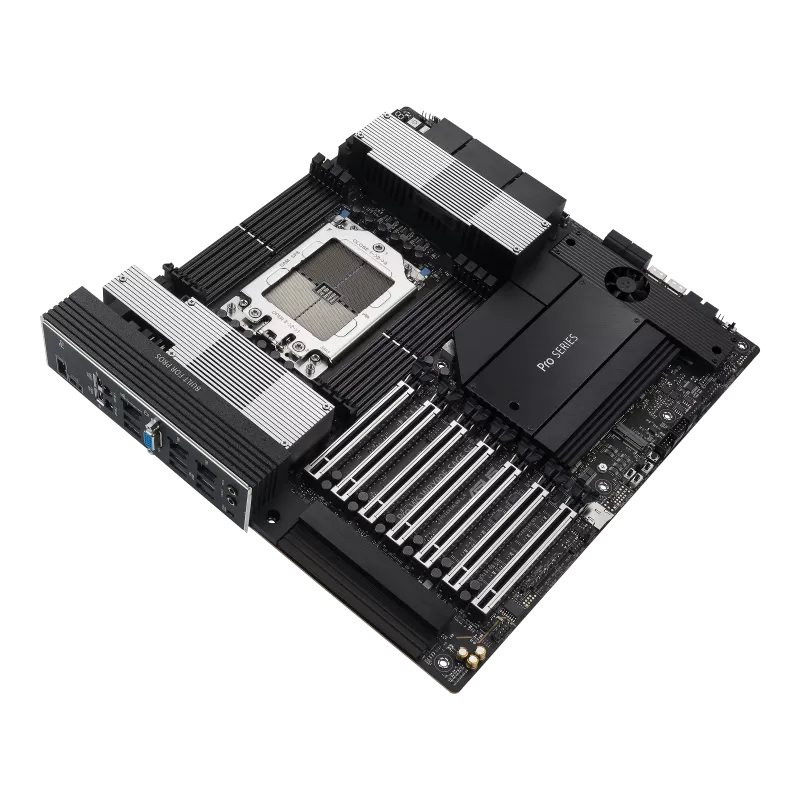

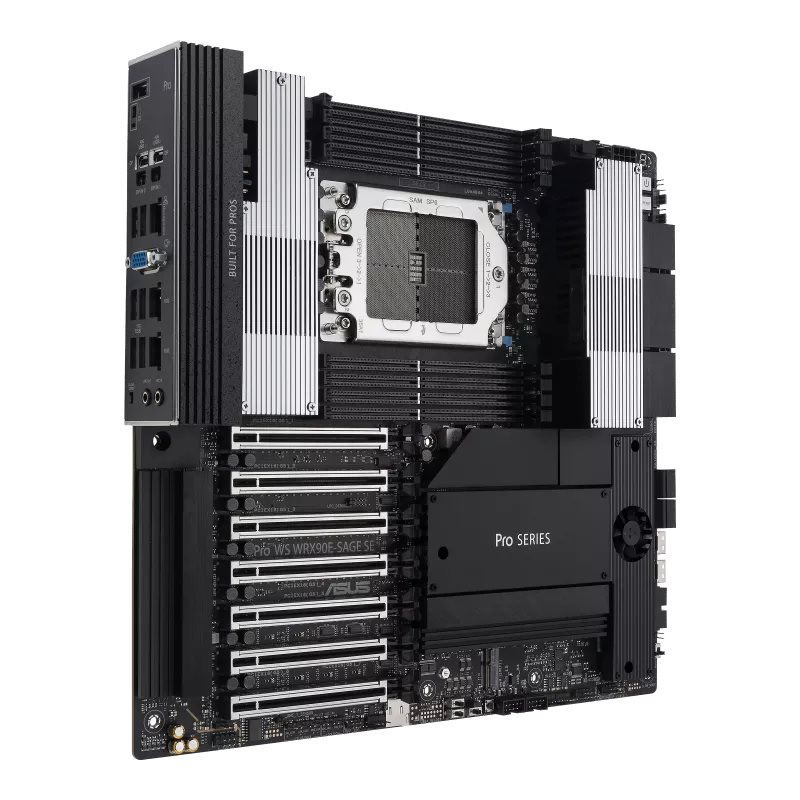

ASUS Pro WS WRX90E-SAGE SE
AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim
- AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
- Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
- CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
- Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch. - Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
CPU
AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series*
*Refer to www.asus.com for CPU support list.
Chipset
AMD WRX90 Chipset
Memory
8 x DIMM slots, DDR5, ECC Registered Memory*
4 Channel Memory Architecture
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Expansion Slots
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
*Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
**To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD WRX90 Chipset
2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 x Intel® dual 10Gb Ethernet
ASUS LANGuard
USB
Rear USB (Total 9 ports)
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
*A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

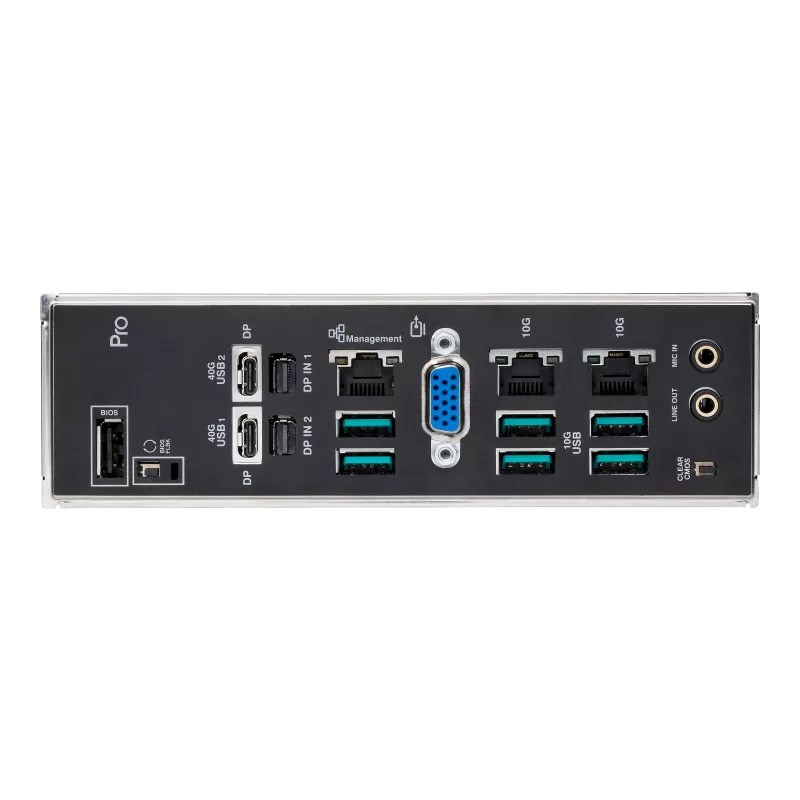

Back Panel I/O Ports
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (2 x Type-A)
1 x VGA port
2 x mini DisplayPort IN
1 x Intel® dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
5 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
Power related
1 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
2 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Chassis intrusion header
1 x COM port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x M.2 slot (Key E)
7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin system panel header
1 x Thermal sensor header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate and onboard thermal pads
- M.2 heatsink

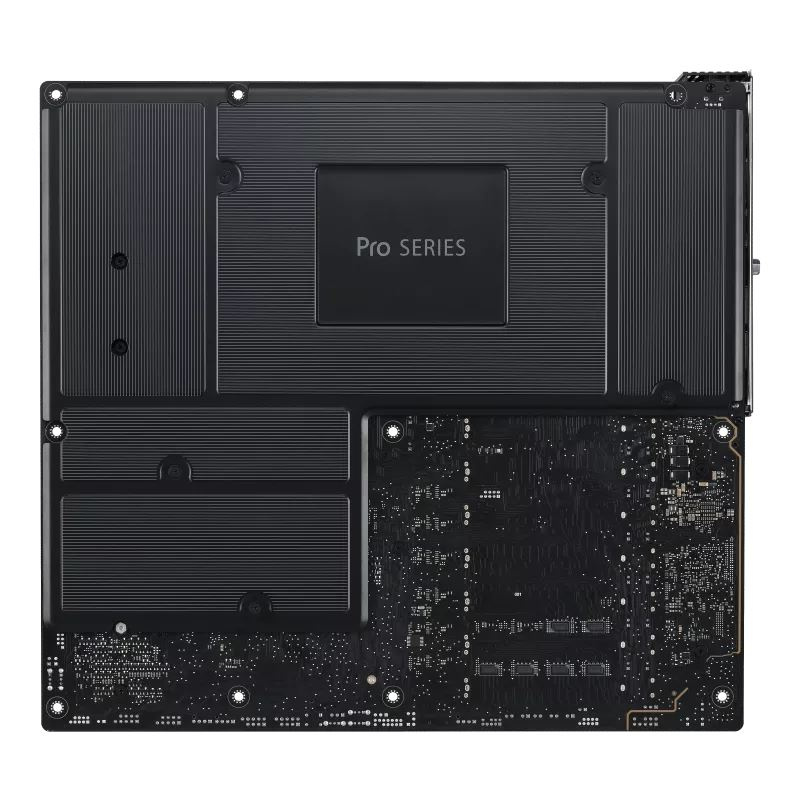

- Steel backplate
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
BMC Related
1 x BMC switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
1 x Message LED header
1 x microSD card socket
2 x LAN LED headers
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header (Dedicated Management for AST2600)
1 x VPP_I2C header
Software Features
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS(text-based)
Manageability
WOL by PME, PXE
Accessories
Cables
2 x PCIe 8-pin to CPU power cables
1 x 24-pin power cable (Y cable)
2 x Mini DisplayPort cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x Q-connector
1 x M.2 Q-Latch package
1 x AMI license sticker
4 x M.2 rubber packages
1 x Screw package for M.2 Key E
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide
Operating System
Windows® 11
Windows® 10 64-bit
Form Factor
EEB Form Factor
(30.5 cm x 33 cm)
