BAZAR - ASUS MB Sc LGA1200 ROG STRIX B560-G GAMING WIFI, Intel B560, 4xDDR4, 1xDP, 1xHDMI, mATX, (Bez příslušenství)
Kód: 1887762Ihned k odeslání
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:Intel; Socket (patice):Socket 1200; Technologie paměti RAM:DDR4; PCI Express x16:Více než 1; Integrovaná grafická karta:Ano (CPU); Další rozhraní:M.2, WiFi.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1887762
EAN:
1887762
Záruka:
36 Měsíc(ů)
Stav:
Bazar
Socket (patice):
Socket 1200
Formát základní desky:
micro ATX
Integrovaná grafická karta:
Ano (CPU)
Chipset:
Intel
Technologie paměti RAM:
DDR4
PCI Express x16:
Více než 1
Další rozhraní:
M.2, WiFi
Popis BAZAR - ASUS MB Sc LGA1200 ROG STRIX B560-G GAMING WIFI, Intel B560, 4xDDR4, 1xDP, 1xHDMI, mATX, (Bez příslušenství)

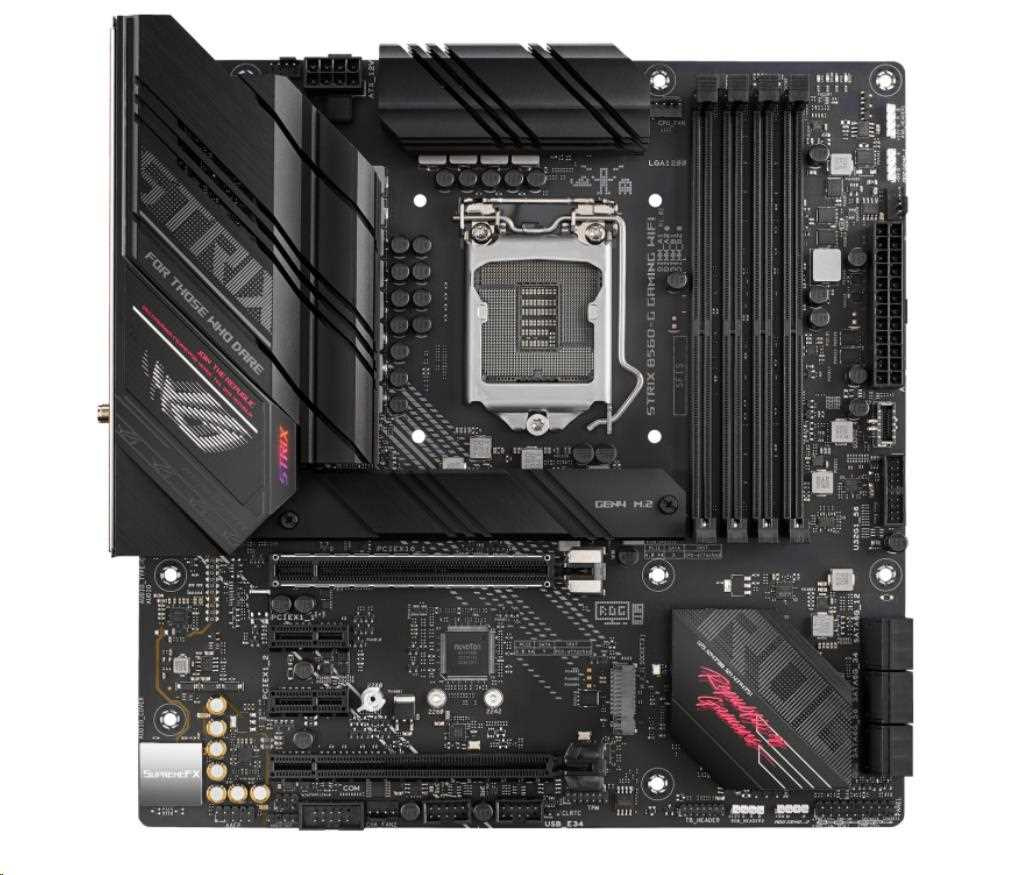

ROG STRIX B560-G GAMING WIFI
Intel® B560 LGA 1200 micro ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Intel® 2.5 Gb Ethernet, Two M.2 slots with one slot featuring its own heatsink, USB 3.2 Gen 2x2 USB Type-C® , SATA and Aura Sync RGB lighting
- Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™, 10th Gen Intel Core, Pentium® Gold and Celeron® processors
- Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Smooth Networking: On-board Intel® WiFi 6 AX200 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMITM 2.0 and DisplayPort 1.4 output, two M.2 slots and USB 3.2 Gen 2x2 USB Type-C®
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
- Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B560 Chipset
Memory
Memory Channels: 4DDR4 (Dual channel)
Max Memory Size: 128GB
DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x DisplayPort 1.4**
1 x HDMI 2.0**
* Graphics specifications may vary between CPU types.
**Only Intel® 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update.
*** Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots
1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)
- Intel® 11th processors support PCIe 4.0 x16 mode
- Intel®10th processors support PCIe 3.0 x16 mode
Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
Intel® B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports
* The M.2_2 share bandwidth with SATA6G_1. When M.2_2 runs at SATA mode, SATA6G_1 will be disabled
**To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
USB
Rear USB: Total 9 ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C®)
Front USB: Total 7 ports
1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear audio USB Type-C® port
- Premium Japanese audio capacitors
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

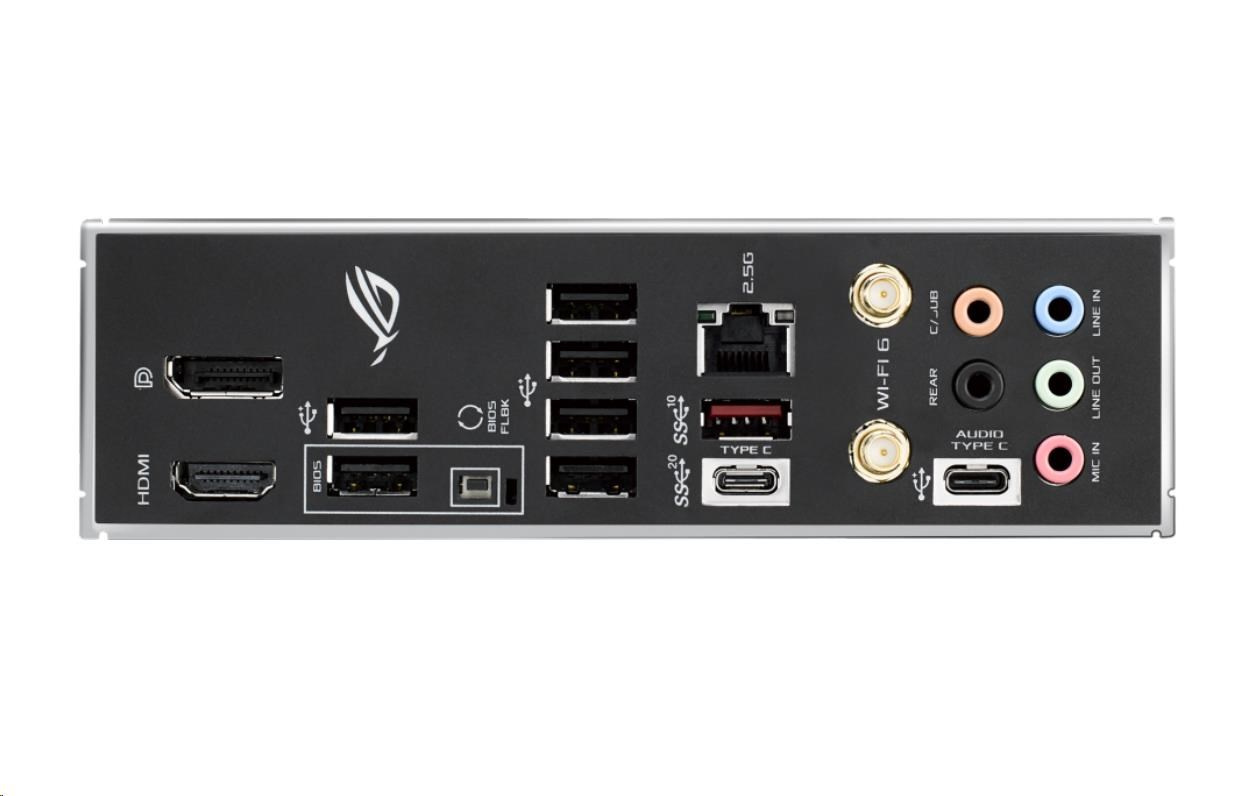

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C®)
1 x HDMI™ port
1 x DisplayPort
1 x ASUS Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
1 x TB Header (for add-on TB card)
1 x Thunderbolt™ header
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
Software Features
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
-AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
DAEMON Tools
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
1 x ROG audio USB Type-C® cable
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x ROG key chain
1 x ROG STRIX stickers
1 x ROG STRIX thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows®10 64-bit
Form Factor
microATX
24.4cm x 24.4cm
