BAZAR - GIGABYTE MB Sc AM4 A520M K V2, AMD A520M, 2xDDR4, 1xHDMI, 1xVGA - Po opravě (Bez příšlušenství)
Kód: 524891Ihned k odeslání
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:AMD A520, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:1; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:1; VGA:1; DVI:0; USB 2:6; USB 3:6; USB C:0; TPM.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
524891
EAN:
524891
Záruka:
6 Měsíc(ů)
Stav:
Bazar
Socket (patice):
Socket AM4
Formát základní desky:
micro ATX
Chipset:
AMD, AMD A520
Technologie paměti RAM:
DDR4
PCI Express x16:
1
Podpora RAID:
1, 10
LPT port:
Ne
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
AMD
Počet paměťových slotů:
2
DisplayPort:
0
TPM:
Ano
USB 2:
6
USB 3:
6
PCI:
0
M.2 slot:
1
SATA 3:
4
VGA:
1
DVI:
0
HDMI:
1
Led Header:
Ne
PCI Express x1:
1
USB C:
0
LAN:
1Gbit/s
Popis BAZAR - GIGABYTE MB Sc AM4 A520M K V2, AMD A520M, 2xDDR4, 1xHDMI, 1xVGA - Po opravě (Bez příšlušenství)
BAZAR
.
GIGABYTE A520M K V2
AMD A520 Ultra Durable Motherboard with GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors Design
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- GbE LAN with Bandwidth Management
- 8-Channel HD Audio with High Quality Audio Capacitors
- Rear HDMI and D-sub for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset
AMD A520
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB
CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
Back Panel Connectors

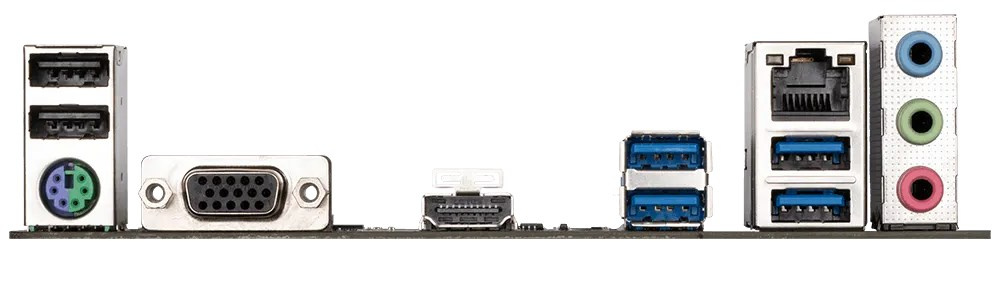

1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 23.3cm x 19.8cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
