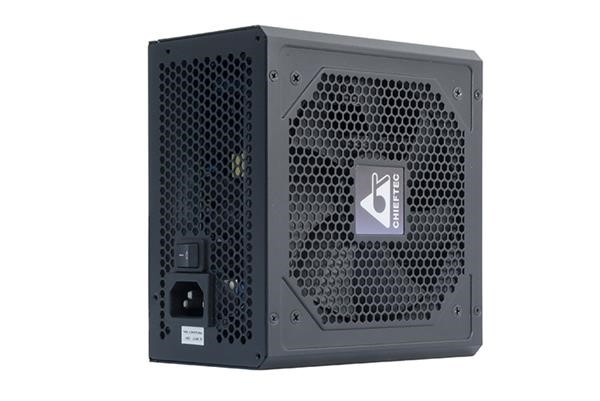

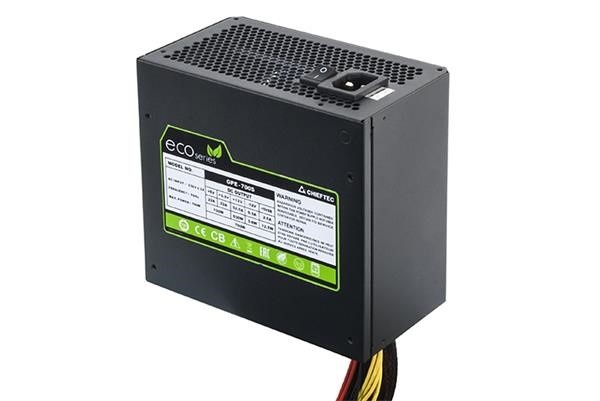

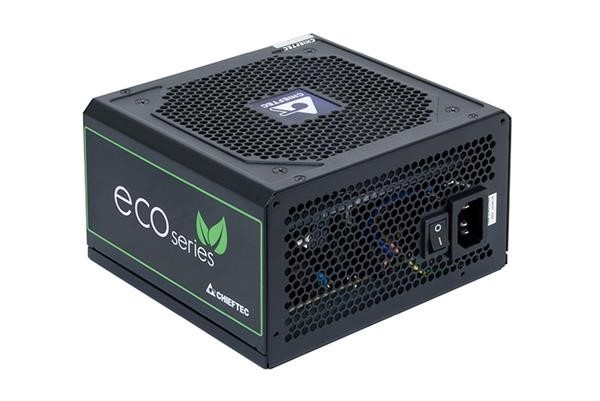

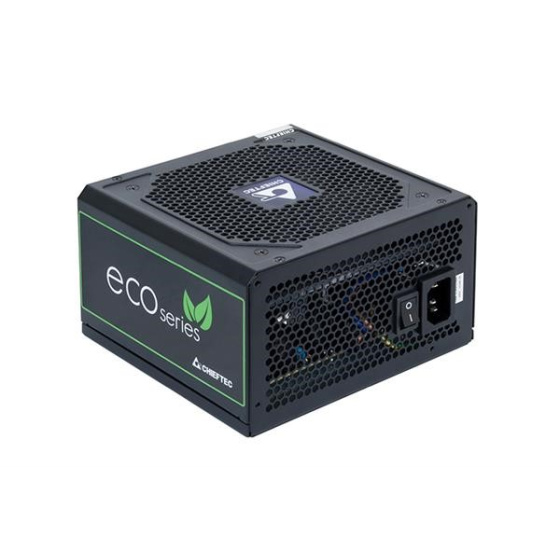

CHIEFTEC zdroj iARENA ECO GPE-700S, 700W, 120mm fan, PFC, účinnost >85%, Bronze, Retail
Kód: 1022473Ihned k odeslání
Termín a způsob doručení
Výkon zdroje (W):700; Formát zdroje:ATX; Konektory:8pin CPU 1x, PCIe 6-pin, PCIe 8-pin, SATA 15-pin, Molex; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Efektivita zdroje:85+; Podsvícení:Bez podsvícení.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1022473
EAN:
4710713234208
Záruka:
24 Měsíc(ů)
Stav:
Formát zdroje:
ATX
Konektory:
8pin CPU 1x, PCIe 6-pin, PCIe 8-pin, SATA 15-pin, Molex
Konektory pro základní desku:
ATX 24-pin, ATX 20-pin, EPS 8-pin
Efektivita zdroje:
85+
Modulární kabeláž:
Ne
Podsvícení:
Bez podsvícení
Výkon zdroje (W):
700,000000000
Popis CHIEFTEC zdroj iARENA ECO GPE-700S, 700W, 120mm fan, PFC, účinnost >85%, Bronze, Retail
The name ECO stands for maximum efficiency, ecological values and a new era of Power Supplies so that while in R & D, all relevant factors were considered accordingly, resulting in an absolute value-added solution for both home and office solutions. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures. The efficiency of the four new power supplies at loads of 20%, 50% and 100% lies by a stable and solid 85%, thereby defining the Power Supply to fulfill all ENERGY STAR 5,0 requirements as stipulated by the EU.
Owing to the future-oriented and effective layout of the PCBs, Green IT projects are realized cost efficiently with ease. The performance scale of the four new ECO power supplies range as follows: 400W (GPE-400S), 500W (GPE-500S), 600W (GPE-600S) and 700W (GPE-700S). All power supplies comply with the latest ATX 12V 2.3 specifications and meet the Haswell requirements. The cable lengths are very generous and a vast amount of connectors are given. The latest “state-of-the-art” +12V single rail technology is implemented which ensures that power hungry components such as multi-GPUs are serviced with a stable power flow. Even under full load, the large 120mm low noise fan rotates at max. 1500RPM and is barely audible.
The ECO series come in an eye-catching retail box including the European power cable.
Connectors:
|
| 24PIN | SATA | MOLEX | 4PIN 12V | 8PIN EPS (4+4) | 6+2 PCIe |
| GPE-400S | 1 | 4 | 2 | 1 | x | x |
| GPE-500S | 1 | 4 | 2 | 1 | x | 1 |
| GPE-600S | 1 | 6 | 2 | x | 1 | 2 |
| GPE-700S | 1 | 6 | 2 | x | 1 | 2 |
Technical specifications:
|
| GPE-400S | GPE-500S | GPE-600S | GPE-700S |
| AC Input: | 230V 3A | 230V 5A | 230V 6,3A | 230V 6,3A |
| Frequency: | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| +5V: | 15A | 20A | 22A | 22A |
| +3,3V: | 21A | 21A | 22A | 22A |
| +5V & +3,3V combined: | 103W | 103W | 120W | 130W |
| +12V 1: | 30A | 37,5A | 45A | 52,5A |
| P.F.: | >0,9 | >0,9 | >0,9 | >0,9 |
| -12V: | 0,3A | 0,3A | 0,3A | 0,3A |
| +5VSB: | 2,5A | 2,5A | 2,5A | 2,5A |
| Maximum Load: | 400W | 500W | 600W | 700W |
