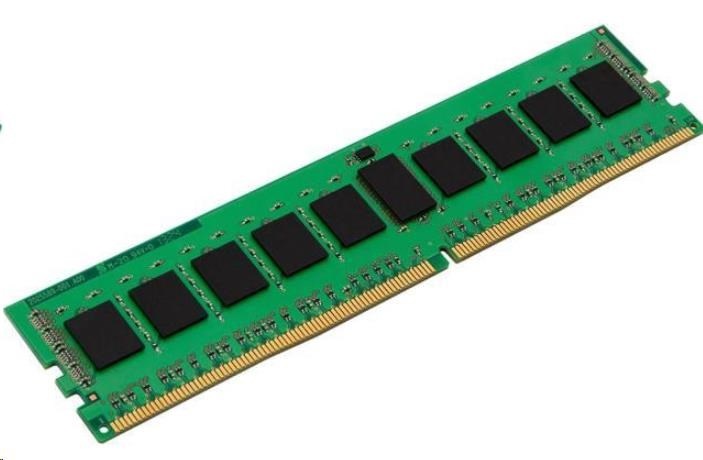

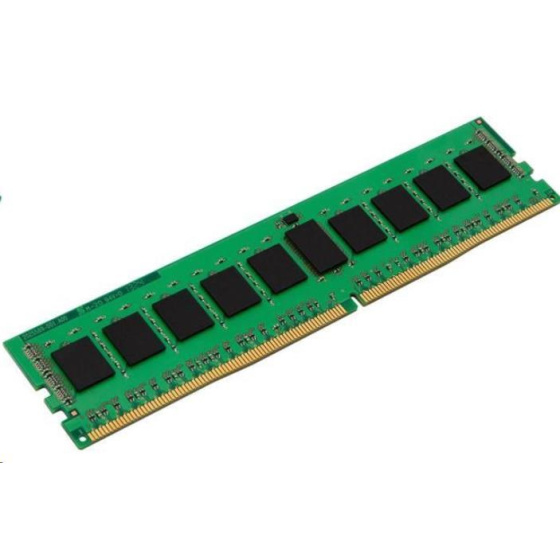

KINGSTON DIMM DDR4 32GB 3200MT/s CL22 Non-ECC 2Rx8 ValueRAM
Kód: 552444Ihned k odeslání
Termín a způsob doručení
Využití paměti:PC; Technologie paměti RAM:DDR4; Velikost paměti RAM (GB):32; Frekvence paměti RAM (GHz):3.2; Časování CAS:22; Chlazení:Bez chladiče.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
552444
EAN:
740617305975
Záruka:
99 Doživotní
Stav:
Technologie paměti RAM:
DDR4
Využití paměti:
PC
RGB:
Ne
Chlazení:
Bez chladiče
Velikost paměti RAM (GB):
32,000000000
Frekvence paměti RAM (GHz):
3,200000000
Časování CAS:
22,000000000
Popis KINGSTON DIMM DDR4 32GB 3200MT/s CL22 Non-ECC 2Rx8 ValueRAM
ValueRAM's KVR32N22D8/32 is a 4G x 64-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
TECHNICAL SPECIFICATIONS
| CL(IDD) | 22 cycles |
| Row Cycle Time (tRCmin) | 45.75ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0oC to +85oC |
| Storage Temperature | -55oC to +100oC |
.
