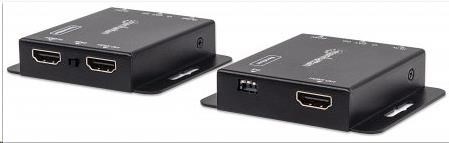

Manhattan HDMI over Ethernet Extender Kit
Kód: 254390Ihned k odeslání
Termín a způsob doručení
Specifikace kabelu / redukce:HDMI kabel.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
254390
EAN:
766623207461
Záruka:
36 Měsíc(ů)
Stav:
Specifikace kabelu / redukce:
HDMI kabel
Popis Manhattan HDMI over Ethernet Extender Kit
Easily extend a high-definition signal via single Ethernet cable.
The Manhattan 1080p HDMI over Ethernet Extender Kit is the ideal solution for connecting virtually any HDMI source (PlayStation, Xbox, Blu-ray player, satellite receiver, digital recorder, etc.) to an HD display or projector up to 50 m (164 ft.) from its source via a single Cat6 Ethernet cable. These powered HDMI Extenders provide reliable 1080p resolution video and multichannel audio transmission over longer distances than is possible with HDMI cables alone. Plus, the transmitter module has an additional HDMI output port, allowing a second monitor to be placed in a control closet or run to second display. For additional quality control, the Manhattan 1080p HDMI over Ethernet Extender Kit includes an EDID control switch to minimize display issues, a built-in equalizer dip switch for long-run screen flickering corrections and a wideband IR blaster and receiver for remote control of the source device.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, home theater, conference rooms, business office and retail applications, the Manhattan 1080p HDMI over Ethernet Extender Kit boosts and extends a 1080p signal up to 50 m (164 ft.) for convenient display or projector placement. Ethernet cabling — Cat6 UTP, SSTP or SFTP (cables not included) — is less expensive and easier to install than HDMI cabling and in-line signal repeaters, and, when used with our Extender Kit, delivers a clear, sharp and vivid picture over longer distances.
Quality Construction and Easy Installation
HDCP compliance with HDMI and DVI 1.0 means this Kit is tested to guarantee performance and reliability. It installs quickly without running software or installing additional hardware. It comes with a power adapter, which powers the receiver or transmitter over Ethernet for the unit using the power adapter, freeing up a power plug for more important applications.
Features:
- Extends HDMI connection up to 50 m (164 ft.) between an HDMI source and an HD monitor or projector using one Ethernet cable
- Two-port (one HDMI, one Ethernet) transmitter allows HDMI signals to be sent over Ethernet and be split to local display simultaneously
- Supports video-amplifier bandwidth up to 340 MHz and 3.40 Gbps per channel (10.2 Gbps total) for 1080p displays
- Supports lossless LPCM 8-channel uncompressed audio formatting, 7.1/5.1 surround sound
- Wideband IR transmit and receive cables allow for convenient remote control of HD signal source
- Supports Power over Cable (PoC); AC-powered transmitter (Tx) unit powers receiver (Rx) unit
- Adjustable EDID switch minimizes HDCP and other display issues; allows display and source settings to match to achieve best picture
- Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
- Plug and play — requires no installation or configuration
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
- Gold-plated contacts for corrosion-free connections
- For additional distance capabilities, use 15 m HDMI cables (see part # 308434) on both transmitter and receiver
- Three-year warranty
SPECIFICATIONS
Standards and Certifications
HDCP
DVI 1.0
CTS 1.2
CE
FCC
RoHS2
General
Cat6 cable 1080p at 50 m (165 ft.)
Cat6 cable 720p at 70 m (230 ft.)
Cat6 cable 480p at 100 m (300 ft.)
Power: 5 VDC / 1 A (cable length: 1.4 m [4.5 ft.])
Connections

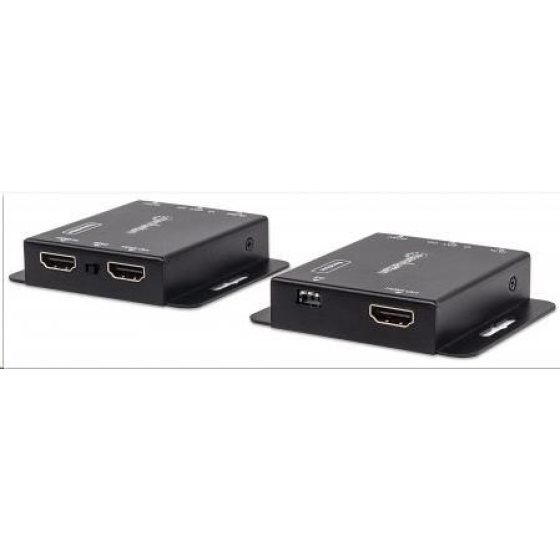

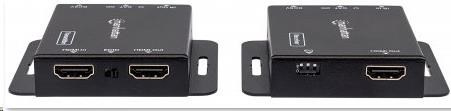

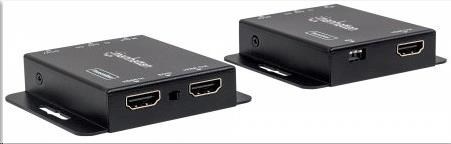

Two HDMI female (transmitter)
One HDMI female (receiver)

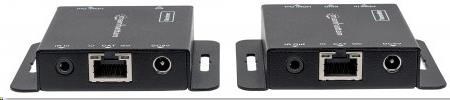

One RJ45 female (transmitter/receiver)
One 5 VDC power female (transmitter)
One 3.5 mm IR female (transmitter/receiver)
Signal Input/Output
Input video signal: 0.5 – 1.0 V p-p
Input DDC signal: 5 V p-p (TTL)
Maximum single-link range: 1920x1200 at 60Hz (1080p)
Output video: HDCP 1.2, DVI 1.0
Frequency: 3.40 Gbps / 340 MHz
Video Resolutions
DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
Physical
Dimensions: 69 x 80 x 17mm (2.7 x 3.2 x .7 in.)
Weight: 0.35 kg (12.3 oz.)
Housing: metal
Operating Environment
Operation Temperature: 0 – 40°C (32 – 104°F)
Storage Temperature: -20 – 60°C (-4 – 140°F)
Humidity (noncondensing): 0 – 96%
Package Contents

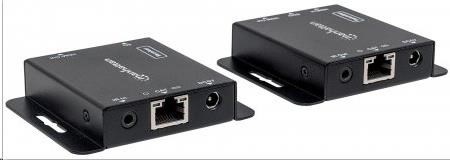

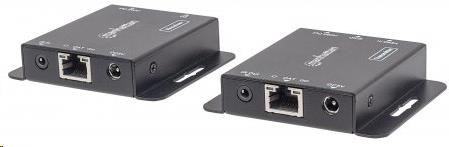

1080p HDMI over Ethernet Extender Kit (one receiver and one transmitter module)
Power adapter (one unit)

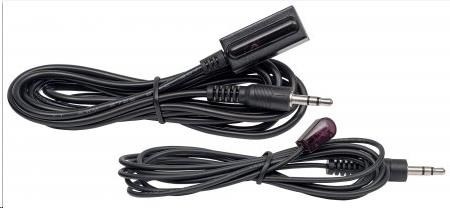

IR blaster and receiver (one unit each)
Quick Instruction Guide
