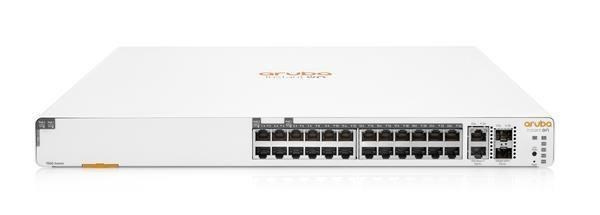

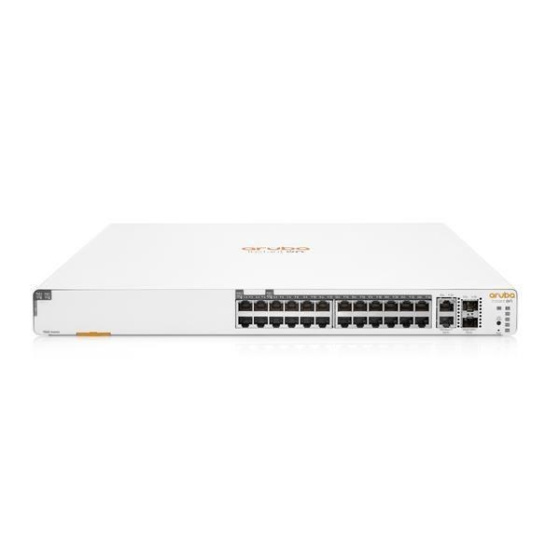

5 x Aruba Instant On 1960 24G PoE (20pClass4 + 4pClass6) 2XGT 2SFP+ 370W Switch ( 5 pack )
Kód: 1881080Na dotaz
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:VLAN (virtual local area network), L2; Technologie:Gigabit Ethernet + 10 GbE porty, Gigabit Ethernet 1000Mbps, Gigabit optika; Počet PoE Out portů:24; Počet PoE Out portů:24; Počet SFP portů:4; Počet SFP portů:4; Maximální počet portů:24; Přenosová rychlost LAN (Mb/s):95; Maximální počet portů:24.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1881080
Záruka:
99 Doživotní
Stav:
Maximální počet portů:
24
Provedení:
Rack mounted 19"
Technologie:
Gigabit Ethernet + 10 GbE porty, Gigabit optika, Gigabit Ethernet 1000Mbps
Vlastnosti switche:
Rozšiřitelnost
Přenosová rychlost LAN (Mb/s):
95
Funkce:
VLAN (virtual local area network), L2
Počet SFP portů:
4
Počet PoE Out portů:
24
Maximální počet portů:
24
Počet PoE Out portů:
24
Počet SFP portů:
4
Popis 5 x Aruba Instant On 1960 24G PoE (20pClass4 + 4pClass6) 2XGT 2SFP+ 370W Switch ( 5 pack )
5 x Aruba Instant On 1960 24G PoE (20pClass4 + 4pClass6) 2XGT 2SFP+ 370W Switch ( 5 pack )
I/O ports and slots
24 RJ-45 autosensing 10/100/1000 Mbps ports including 4 CL4 and 20 CL6 PoE ports
IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at Class 4, IEEE 802.3bt Class 6); Duplex: 10BASE-T/100BASE TX: half or full; 1000BASE-T: full only
2 SFP+ 10GbE ports 2 10GBASE-T ports
Dimensions
350.5(d) x 442.5(w) x 43.95(h) mm
Weight
10.4 lb (4.7 kg)
CPU
Single-Core ARM v7 Cortex-A9 @800MHz
100 Mb Latency
< 4.4 uSec
1000 Mb Latency
< 2.2 uSec
10000 Mb Latency
< 1.1 uSec
Throughput (Mpps)
95 Mpps
Capacity
128 Gbps
Routing Table size (# of static entries)
32 IPv4/IPv6
MAC Address table size (# of entries)
16,000 entries
Reliability MTBF (years)
65.3
Operating temperature
0-40°C, 0-10,000 ft
Operating relative humidity
15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/Storage temperature
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/Storage relative humidity
15% to 90% @ 149°F (65°C) non-condensing
Altitude
up to 10,000 ft (3 km)
Acoustics1
LWAd = 3.5 Bel
Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
Electrical Characteristics
Frequency
50Hz/60Hz
AC voltage
100-127VAC / 200-240VAC
Current
5.0A/0.4A
Maximum power rating
100-127V: 500W 200-220V: 480W
Idle power
100-127V: 40W 200-220V: 80W
PoE power
Total 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE)
Power Supply
Internal power supply
Safety
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
EN/IEC 60825-1:2014 Class 3
Emissions
EN 55032:2015/CISPR 32, Class A
FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
Generic
EN 55035, CISPR 35, KN35
EN
EN 55035, CISPR 35
ESD
EN/IEC 61000-4-2
Radiated
EN/IEC 61000-4-3
EFT/Burst
EN/IEC 61000-4-4
Surge
EN/IEC 61000-4-5
Conducted
EN/IEC 61000-4-6
Power frequency magnetic field
EN/IEC 61000-4-8
Voltage dips and interruptions
EN/IEC 61000-4-11
Harmonics
EN/IEC 61000-3-2
Flicker
EN /IEC 61000-3-3
Device Management
Aruba Instant On Cloud; Web browser; SNMP Manager
Mounting Positions and Supported Racking
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
