Intellinet Cable Tester, Net Toner and Probe Kit, Tone Generator, RJ45, RJ12
Kód: 58329Na dotaz
Termín a způsob doručení
Typ komponenty:Nářadí, Měřící přístroje.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
58329
EAN:
766623515566
Záruka:
24 Měsíc(ů)
Stav:
Typ komponenty:
Měřící přístroje, Nářadí

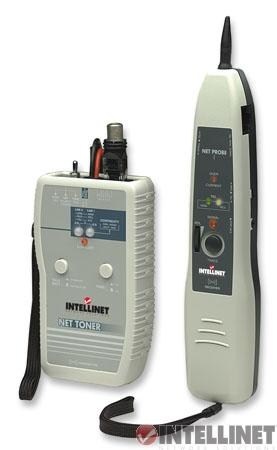

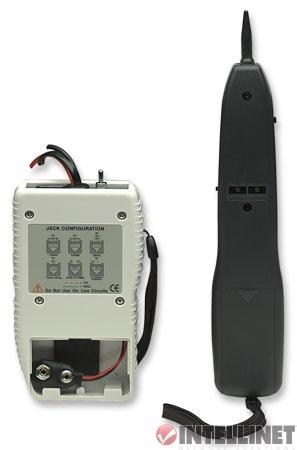

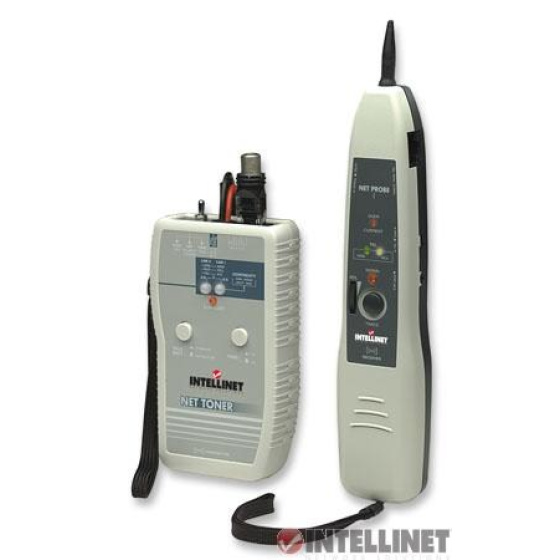

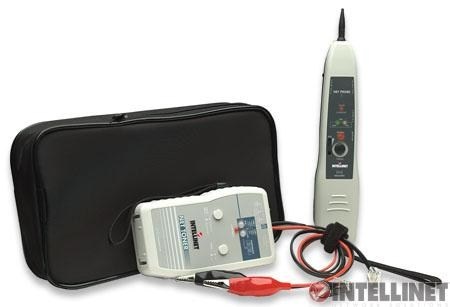

Popis Intellinet Cable Tester, Net Toner and Probe Kit, Tone Generator, RJ45, RJ12
Net Toner and Probe Kit Tone Generator [515566] •Tests datacom, telecom, security, video, and audio networks •Two position switch for single or multi-tone signal •LEDs for line polarity, continuity and voltage •Enhanced talk battery mode provides power for voice communications over inactive pairs •Testing leads and modular cables for individual wire tests or modular jack tests •Replaceable plastic tip to prevent accidental shorts •Trace or identify wire or cables in a bundle or group •Alligator clips, RJ45 jack, RJ12 plug, optional F-connector Color •Beige Specifications •Net Toner •Toner Frequency: High alternating 500-781 Hz ; Low alternating 446-657 Hz •Talk Battery: 9V into a 600 ohms circuit •Voltage protection: 50 VDC or 24 VAC •Battery: 9V DC standard or alkaline •CE Approved: EN 55022 Class B for ITE and EN 55024 •Size: 125 (L) x 68 (W) x 26 (H) mm (4.9 x 2.7 x 1.2 in.) •Weight: 120g (.37 lb) Net Probe •Gain: 30 db •Tip resistance: 30 ohms (Plastic tip) •Battery: 9V DC standard or alkaline •CE Approved: EN 55022 Class B for ITE and EN 55024 •Size: 210 (L) x 40 (W) x 28 (H) mm (8.1 x 1.6 x 1 in.) •Weight: 140g (.30 lb) Environmental: •Operating temperature: 0 – 40°C (32 – 104°F) Package Contents •Net Probe •Net Toner w/ Alligator clips and RJ-12 connector •Female F-connector to RJ-45 adapter •Carrying pouch •User Manual.
