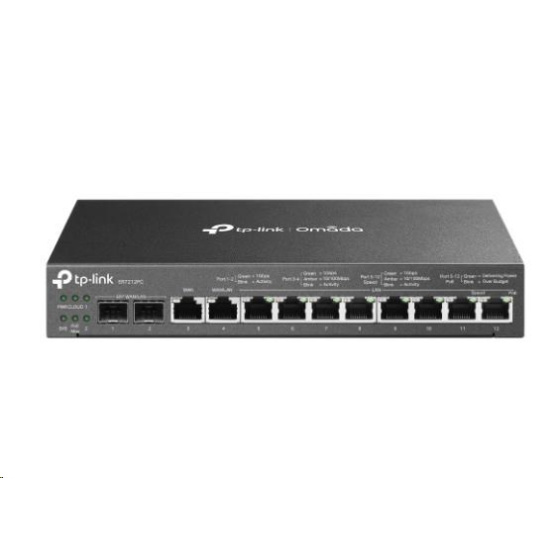

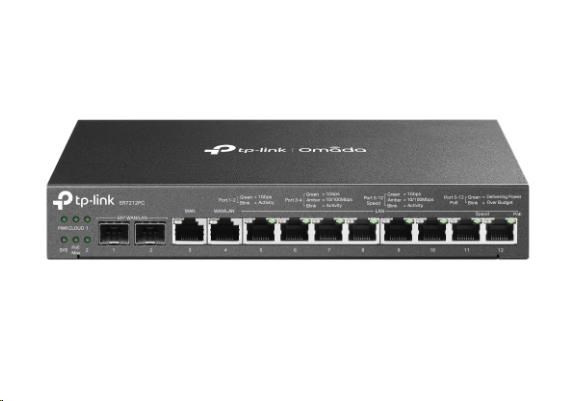

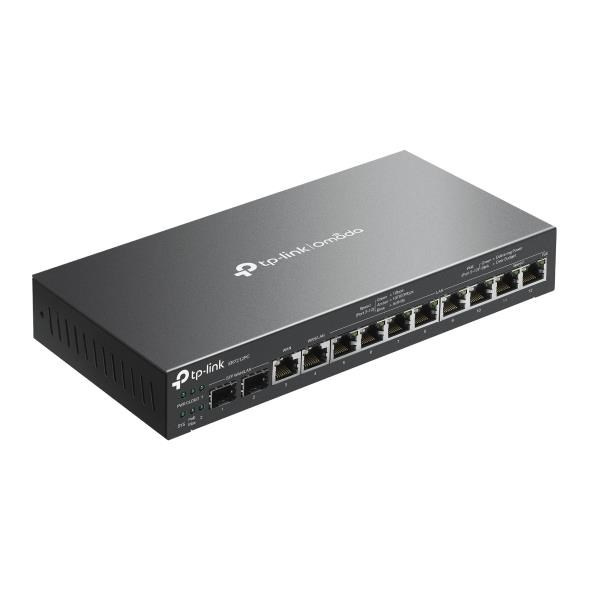

TP-Link ER7212PC OMADA 3v1 VPN router (2xSFP WAN/LAN,1xGbEWAN,1xGbELAN/WAN,8xGbELAN,8xPoE+,110W,fanless)
Kód: 438732Ihned k odeslání
Termín a způsob doručení
Funkce:Router, VPN; Gigabit ethernet; Počet SFP portů:2; Počet SFP portů:2; Další vlastnosti:Podpora IPv6, PoE (Power over ethernet), Firewall, Management, FTP server, VLAN.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
438732
EAN:
4897098688717
Záruka:
60 Měsíc(ů)
Stav:
Gigabit ethernet:
Ano
Další vlastnosti:
Podpora IPv6, VLAN, Management, FTP server, PoE (Power over ethernet), Firewall
Funkce:
VPN, Router
Počet SFP portů:
2
Počet SFP portů:
2
Popis TP-Link ER7212PC OMADA 3v1 VPN router (2xSFP WAN/LAN,1xGbEWAN,1xGbELAN/WAN,8xGbELAN,8xPoE+,110W,fanless)
TP-Link ER7212PC
Gigabitový VPN router Omada 3 v 1
- Router 3 v 1: Plní funkci routeru, PoE switche a kontroleru Omada.
- Profesionální hardware: Dvoujádrový procesor 1,2 GHz s 1 GB paměti DDR3 zajišťuje více než dostatek výkonu až pro 12 gigabitových portů.
- Až 4 ethernetové porty WAN: 2 gigabitové porty SFP WAN/LAN, 1 gigabitový port RJ45 WAN a 1 gigabitový port RJ45 WAN/LAN.
- PoE s výstupním napájením 110 W: 8 portů PoE+ RJ45 LAN odpovídajících standardu 802.3at/af s celkovým výstupním napájením 110 W.
- Centralizovaná správa: Cloudový přístup a aplikace Omada pro pohodlnou a snadnou správu.
- VPN s vysokým zabezpečením: Podporuje připojení IPsec VPN, OpenVPN a L2TP/PPTP VPN.
- Snadná instalace: Kompaktní provedení bez ventilátoru pro umístění na stůl nebo montáž na stěnu.
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er7212pc/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP |
| Interface | • 2 Gigabit SFP WAN/LAN ports • 1 Gigabit WAN port • 1 Gigabit LAN/WAN port • 8 Gigabit LAN ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ohm STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ohm STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 53.5VDC/2.43A Adapter |
| PoE Budget | 8 ports PoE+ output, 110 W PoE Budget |
| Flash | 8Mb Nor + 4 GB EMMC |
| DRAM | 1 GB DDR3 |
| Dimensions (WxDxH) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall-mount |
| PERFORMANCE | |
| Concurrent Session | 24,980 |
| New Sessions /Second | 1,900 |
| NAT (Static IP) | 935.5 Mbps / 942.1 Mbps |
| NAT(DHCP) | 940.2 Mbps / 941.7 Mbps |
| NAT(PPPoE) | 913.1 Mbps / 935.2 Mbps |
| NAT (L2TP) | 545.0 Mbps / 912.7 Mbps |
| NAT (PPTP) | 523.0 Mbps / 912.8 Mbps |
| IPsec VPN Throughput (AES256) | 168.5 Mbps |
| OpenVPN | 34 Mbps |
| L2TP VPN Throughput | • Unencrypted: 845.3 Mbps • Encrypted: 333.2 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1012.6 Mbps • Encrypted: 401.4 Mbps |
| 66 Byte Packet forwarding rate | 154,069 pps / 156,977 pps |
| 1,518 Byte Packet forwarding rate | 81,193 pps / 81,193 pps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE • PPTP • L2TP |
| DHCP | • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | support |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | IP/Port-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup • Online Detection |
| NAT | • Multi-Net NAT • Virtual Server • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | • 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • SHA1, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10) • 16 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10) • 16 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (10) • 16 OpenVPN Tunnels |
| SECURITY | |
| Filtering | URL Filtering |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever |
| MANAGEMENT | |
| Omada App | Yes |
| Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Syslog Support |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • Management up to 1 Router, 2 Switches and 10 EAPs |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER7212PC • Power Adapter • Power Cord • Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
.
