TP-Link OMADA switch SG3218XP-M2 (16x2,5GbELAN, 2xSFP+, 8xPoE+, 240W, 2xConsole)

Name: TP-Link OMADA switch SG3218XP-M2 (16x2,5GbELAN, 2xSFP+, 8xPoE+, 240W, 2xConsole)
Brand: TP-link
SKU: 438943
Price: 25216 CZK
Availability: PreOrder

Kód: 438943

Ihned k odeslání

Termín a způsob doručení

TP-link

Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, L2+, Web management/Smart switch; Technologie:2,5 Gigabit ethernet + 10 Gigabit optika; Počet portů LAN:16; Počet portů LAN:16; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):240; Počet SFP+ portů:2.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

TP-link

Kód:

438943

EAN:

4897098689721

Záruka:

60 Měsíc(ů)

Stav:

Maximální počet portů:

Provedení:

Rack mounted 19"

Technologie:

2,5 Gigabit ethernet + 10 Gigabit optika

Management:

Web, SNMP/RMON

Vlastnosti switche:

Funkce POE po portech

PoE budget (W):

240

Přenosová rychlost LAN (Mb/s):

2500

Funkce:

QoS (Quality of service), VLAN (virtual local area network), L2, PoE (Power over ethernet), DHCP snooping, Web management/Smart switch, L2+

Počet SFP+ portů:

Podporované standardy PoE:

802.3af, 802.3at

Počet portů LAN:

Ventilátor:

Ano

Počet PoE+ portů:

Počet portů LAN:

Maximální počet portů:

Počet SFP+ portů:

PoE budget (W):

240

Počet PoE+ portů:

Popis TP-Link OMADA switch SG3218XP-M2 (16x2,5GbELAN, 2xSFP+, 8xPoE+, 240W, 2xConsole)

Naposledy navštívené produkty

TP-Link OMADA switch SG3218XP-M2 (16x2,5GbELAN, 2xSFP+, 8xPoE+, 240W, 2xConsole)

Nebo nám napište na

HARDWARE FEATURES
Interface	• 16× 2.5 Gbps RJ45 Ports • 2× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Fan Quantity	2
Power Supply	100-240 V AC~50/60 Hz
PoE Ports (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports(802.3at PoE): 8 Ports, up to 30 W per port • Power Budget: 240 W
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	299.4 W (110V/60Hz)(with 240 W PD connected)
Max Heat Dissipation	1021.64 BTU/h (110 V/60 Hz)(with 240 W PD connected)
PERFORMANCE
Switching Capacity	120 Gbps
Packet Forwarding Rate	89.28 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L3 Features	• 32 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay
L2 and L2+ Features	• Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection - Port based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule
VLAN	• VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 256 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN
Access Control List	• Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN
Security	• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB
MANAGEMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• SG3218XP-M2 Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: 0–50 °C (32–122 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

TP-Link OMADA switch SG3218XP-M2 (16x2,5GbELAN, 2xSFP+, 8xPoE+, 240W, 2xConsole)

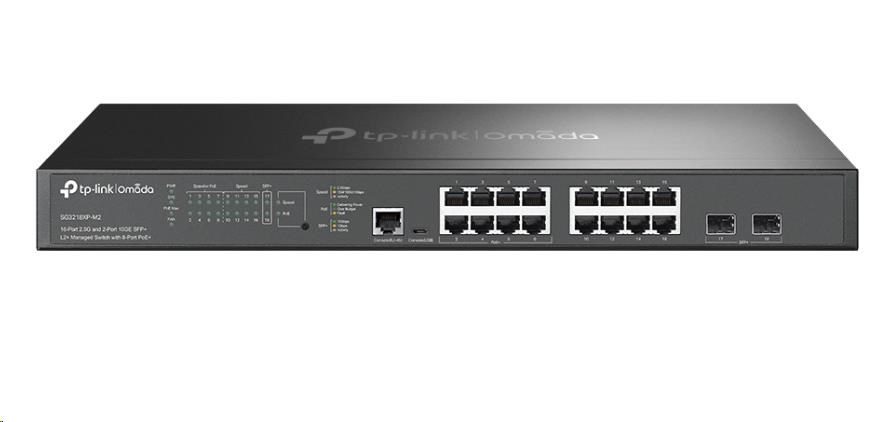

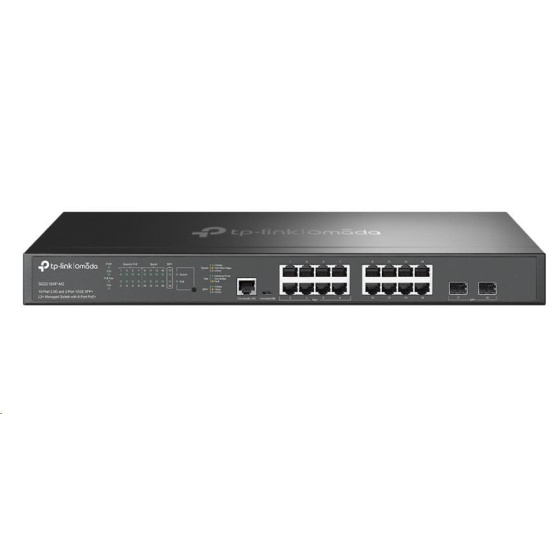

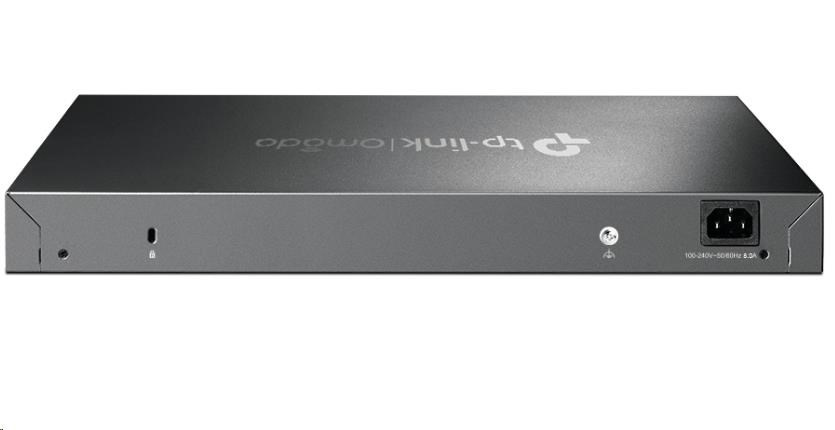

TP-Link OMADA switch SG3218XP-M2

Řízený switch Omada L2+ s 16 porty 2.5G a 2 porty 10GE SFP+ a napájením PoE+ na 8 portech
