TP-Link OMADA switch SG2008 (8xGbE, fanless)
Kód: 324130Ihned k odeslání
Termín a způsob doručení
Provedení:Desktop; Funkce:QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, L2, L2+, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps; Počet portů LAN:8; Počet portů LAN:8; Maximální počet portů:8; Přenosová rychlost LAN (Mb/s):100; Maximální počet portů:8; Management:Web, SNMP/RMON.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
324130
EAN:
6935364010546
Záruka:
60 Měsíc(ů)
Stav:
Maximální počet portů:
8
Provedení:
Desktop
Technologie:
Gigabit Ethernet 1000Mbps
Management:
Web, SNMP/RMON
Přenosová rychlost LAN (Mb/s):
100
Funkce:
DHCP snooping, QoS (Quality of service), Web management/Smart switch, L2+, L2, VLAN (virtual local area network)
Počet portů LAN:
8
Ventilátor:
Ne
Počet portů LAN:
8
Maximální počet portů:
8
Popis TP-Link OMADA switch SG2008 (8xGbE, fanless)

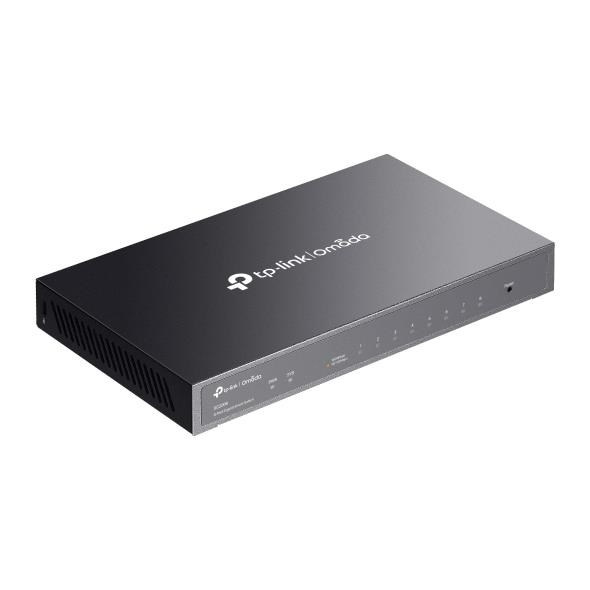

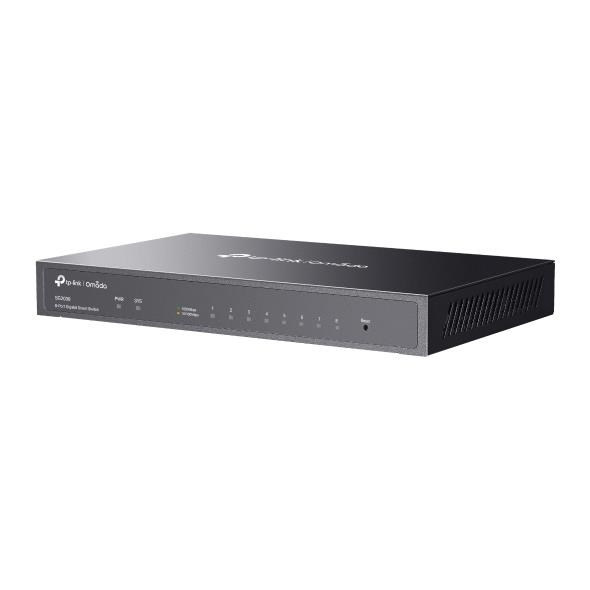

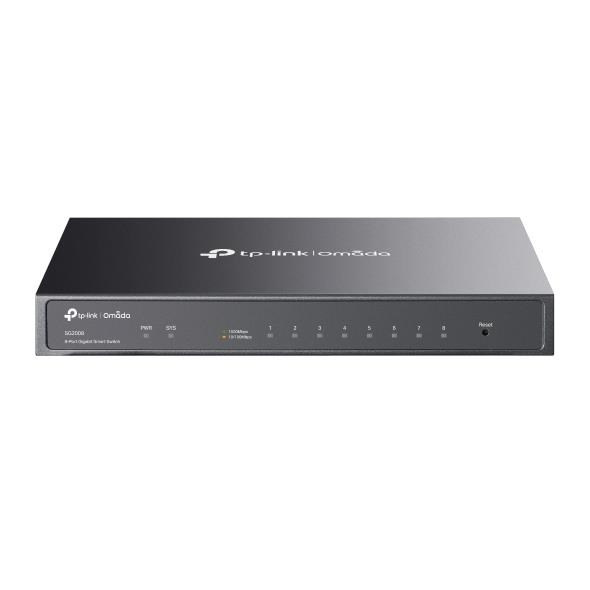

TP-Link OMADA switch SG2008
8portový gigabitový inteligentní switch JetStream
- Plně gigabitové porty: 8 gigabitových portů RJ45 poskytuje vysokorychlostní připojení. 8. port může přijímat napájení ze zdroje kompatibilního s PoE (Power Sourcing Equipment, PSE).
- Integrováno do platformy Omada SDN: funkce ZTP (Zero-Touch Provisioning), centralizovaná cloudová správa a inteligentní monitorování.
- Centralizovaná správa: cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu
- Robustní strategie zabezpečení: 802.1Q VLAN, ACL, zabezpečení portů, Storm Control a další.
- Optimalizovaný přenos hlasu a videa v aplikacích: L2/L3/L4 QoS a funkce IGMP Snooping.
- Univerzální správa: řízené režimy WEB/CLI, SNMP a RMON poskytují bohaté možnosti správy.
Další informace o Omada Cloud SDN>
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/sg2008/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |

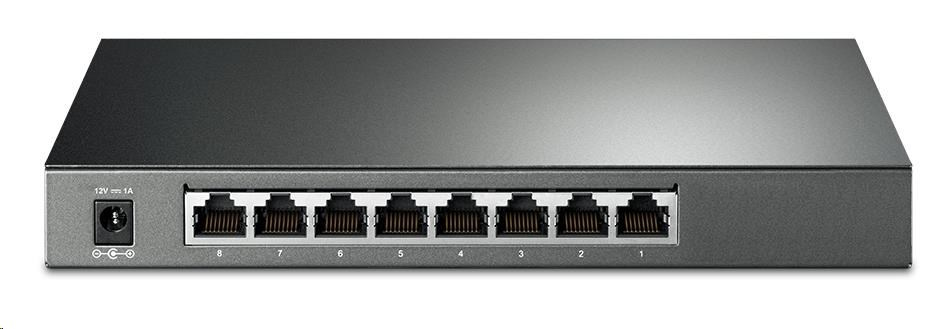

| Interface | 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | • 12 VDC/1 A External Adapter or • Obtain Power from PoE Source |
| Power Consumption | 6.4 W (220 V/50 Hz) |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| PERFORMANCE | |
| Bandwidth/Backplane | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Security | • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG2008 • Power Adapter • Installation Guide • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0°C~40°C (32°F~104°F); • Storage Temperature: -40°C~70°C (-40°F~158°F) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
