TP-Link OMADA switch SG5428XMPP (24xGbE,4xSFP+,8xPoE++,16xPoE+,500W,1xUSB2.0,2xConsole)
Kód: 324375Ihned k odeslání
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, L2+, L3, Web management/Smart switch; Technologie:Gigabit ethernet + 10 Gigabit optika; Počet portů LAN:28; Přenosová rychlost LAN (Mb/s):1000; Podporované standardy PoE:802.3af, 802.3at, 802.3bt; PoE budget (W):500.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
324375
EAN:
8885020626445
Záruka:
60 Měsíc(ů)
Stav:
Provedení:
Rack mounted 19"
Technologie:
Gigabit ethernet + 10 Gigabit optika
Management:
Web, SNMP/RMON
Vlastnosti switche:
Funkce POE po portech, Rozšiřitelnost
Funkce:
QoS (Quality of service), VLAN (virtual local area network), L2, DHCP snooping, Web management/Smart switch, L2+, L3, PoE (Power over ethernet)
Podporované standardy PoE:
802.3af, 802.3at, 802.3bt
Ventilátor:
Ano
Počet portů LAN:
28
Přenosová rychlost LAN (Mb/s):
1000
Maximální počet portů:
28
Počet SFP+ portů:
4
PoE budget (W):
500
Počet PoE+ portů:
16
Počet PoE++ portů:
8
Počet USB 2.0:
1
Popis TP-Link OMADA switch SG5428XMPP (24xGbE,4xSFP+,8xPoE++,16xPoE+,500W,1xUSB2.0,2xConsole)

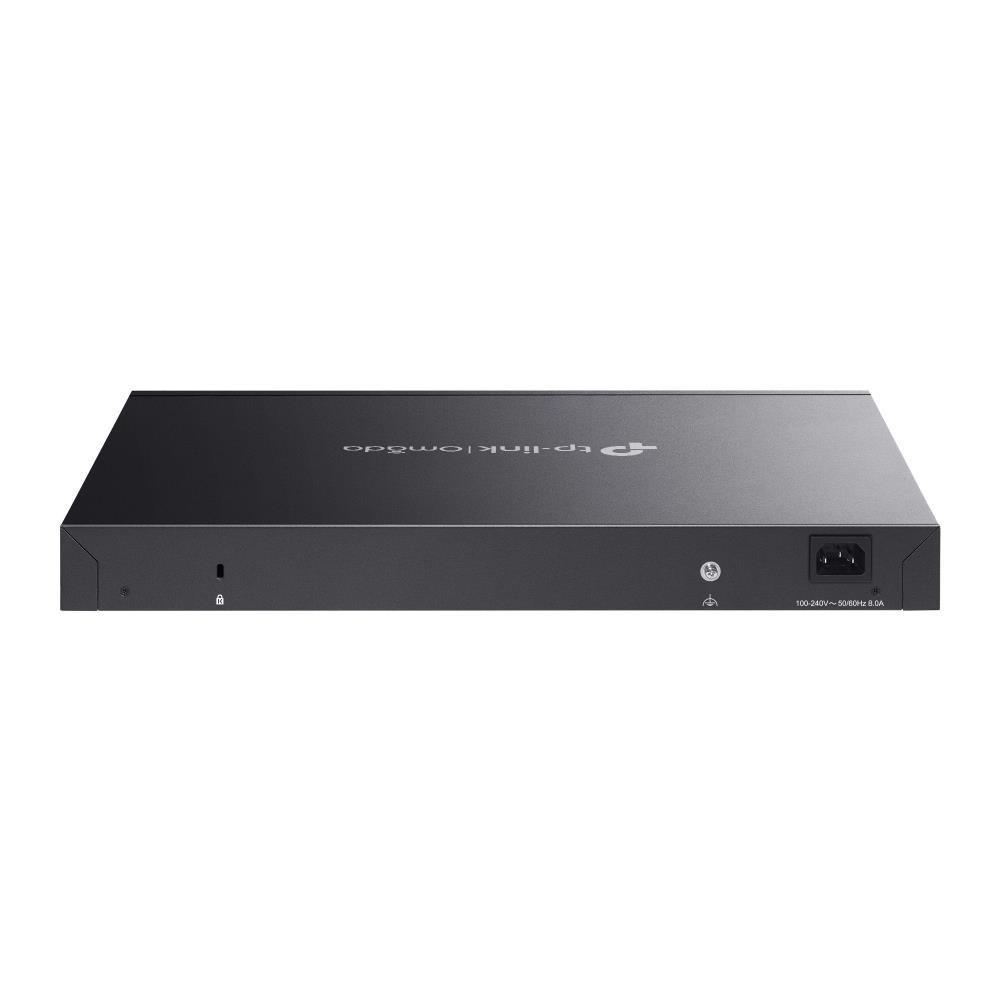

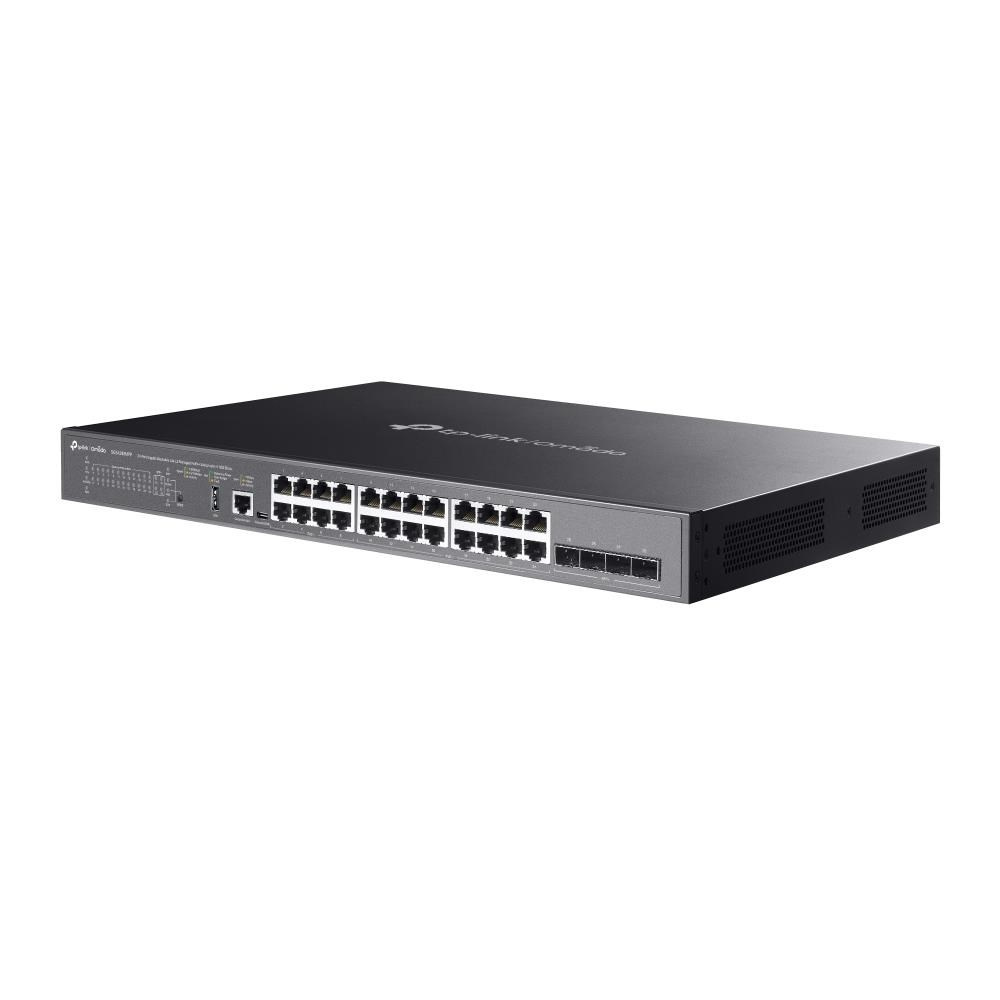

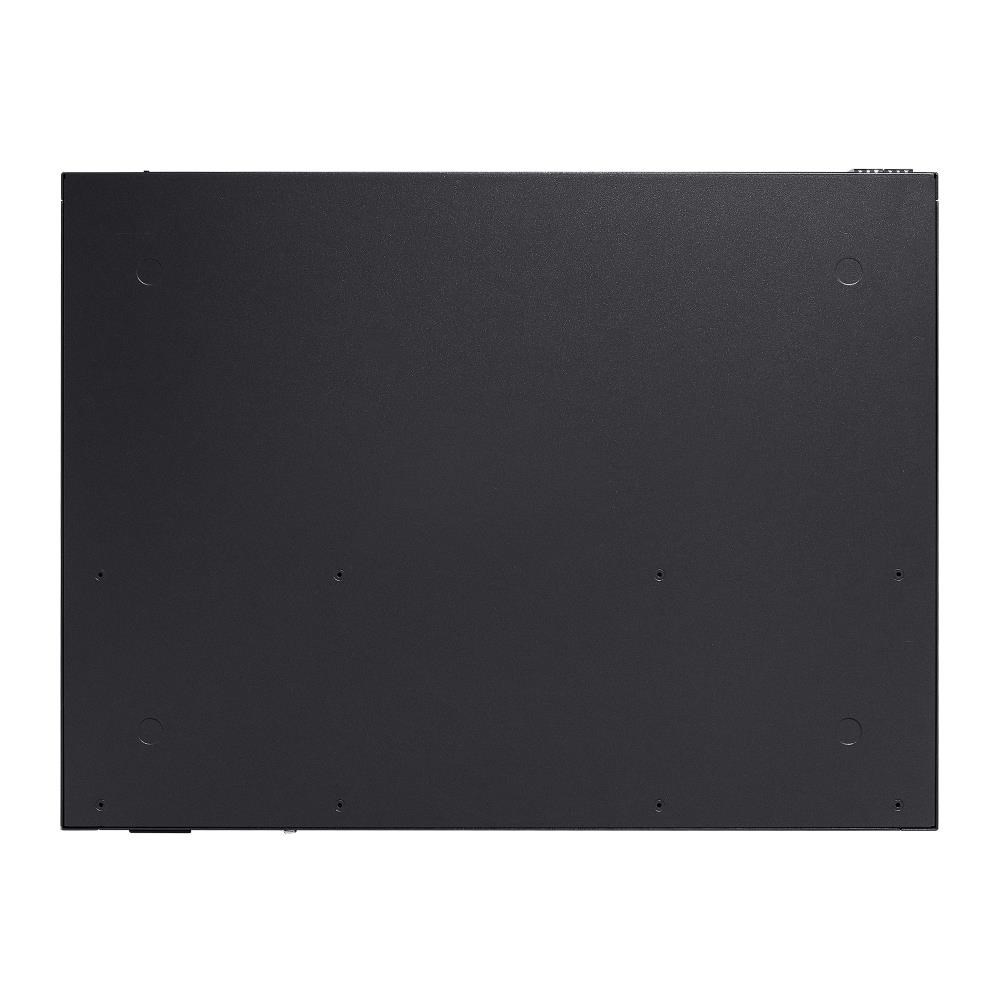

TP-Link OMADA switch SG5428XMPP
Omada 24portový gigabitový stohovatelný switch Lite L3 se správou PoE++ a 4× 10G sloty
- 8× Gigabitové PoE++ porty 802.3af/at/bt (Max 90 W na port)
- 16× Gigabitové PoE+ porty 802.3af/at (Max 30 W na port)
- 4× 10Gb/s SFP+ sloty
- Až 500 W celkový PoE rozpočet
- Funkce Fast PoE a Perpetual PoE
- Fyzické stohování až 4 jednotek pro vestavěnou redundanci a výkon
- L3 funkce: RIP, OSPF, Statické směrování a DHCP server/relay
- Bezpečnostní strategie: ACL, Port Security, DoS ochrana, 802.1X
- ERPS podporuje rychlou ochranu a obnovení v kruhové topologii
- Centralizovaná správa přes cloud pomocí Omada SDN kontroléru
- Samostatná správa přes web, CLI, SNMP a RMON
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-campus/sg5428xmpp
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+) • 4× 1/10 Gbps SFP+ Slots** • 1× USB 2.0 Port • 1× RJ45 Console Port • 1× USB Type-C Console Port |
| Fan Quantity | 3 |
| Power Supply | 100-240 V~ 50/60 Hz |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports: Ports 1~8 (up to 90W per Port) • PoE+ Ports: Ports 9~24 (up to 30W per Port) • Power Budget: 500W* • Fast PoE • Perpetual PoE |
| Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Mounting | Rackmountable |
| Max. Power Consumption | • 587.7 W (220V/50Hz) ( with 500 W PD connected @ 25 °C) • 615.8 W (110V/60Hz) ( with 500 W PD connected @ 25 °C) |
| Max. Heat Dissipation | • 2004.06 BTU/hr (220V/50Hz) ( with 500 W PD connected @ 25 °C) • 2099.88 BTU/hr (110V/60Hz) ( with 550W PD connected @ 25 °C) |
| PERFORMANCE | |
| Switching Capacity | 128 Gbps per Unit |
| Stacking | • Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (uplink ports can be used as stacking ports) • Stacking Bandwidth: Up to 40 Gbps (max 2 stacking ports) |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features | • IP Interfaces: - IPv4: Max 128, IPv6: Max 128 • Static Routing - IPv4 Max 512, IPv6: Max 128 • Host Route Table: Max 1,024 entries • RIP: Version v1/v2, Max 1,796 • OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450 • Static ARP: 512 static entries • Dynamic ARP: 2,000 dynamic entries • Proxy ARP • DHCP Server: - Max 64 IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN |
| L2 and L2+ Features | • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 60 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN |
| Security | • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control |
| Management Features | |
| Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE) |
| OTHERS | |
| Package Content | • SG5428XMPP Switch • Power Cord • Console Cable • Rackmount Kits • Rubber Feet • Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F) • Storage Temperature: -40 °C to 70 ? (-40 °F to 158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
